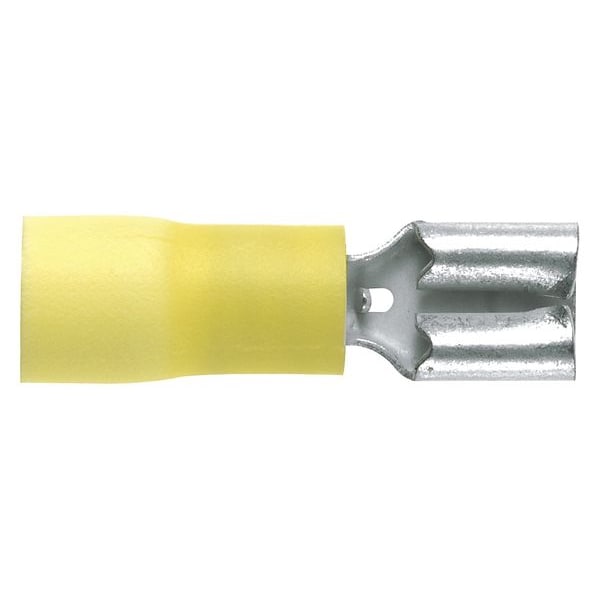

Wire Disconnect, Yellow, Vinyl, PK50

  • Mfr # DV10-250-L

  • Zoro # G0485731

product price:  $63.59
/pk 50, $1.27/ea

Key Features

Insulation
Full
For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Yellow
Connection Type
Crimp
Insulation Type
Vinyl
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DV10-250-L
Zoro #
G0485731
UPC #
-
Country of Origin
Mexico

Dimensions

Tab Size
0.250 in x 0.032 in
Overall Length
1.03 in
Width
0.3"
Overall Length (mm)
26.16
Minimum Metric Conductor Size (mm²)
4
Overall Width (In.)
0.3
Tab Size (mm)
6.3 x 0.8
Overall Length (In.)
1.03
Wire Strip Length (In.)
11933
Maximum Wire Size (AWG)
#10
Tab Size (In.)
0.250 x 0.032
Minimum Wire Size (AWG)
#12
Maximum Wire Insulation Diameter (mm)
5.8
Maximum Copper Conductor Size (AWG)
#10
Maximum Wire Insulation Diameter (In.)
0.23
Maximum Metric Conductor Size (mm²)
6
Overall Height (mm)
3.3
Overall Height (In.)
0.13
Overall Width (mm)
7.62
Wire Strip Length (mm)
7.1
Maximum Metric Conductor Size (mm²)
6
Minimum Metric Conductor Size (mm²)
4
Tab Width
0.25 in
Minimum Wire Size
12 AWG
Strip Length
5/16 in
Tab Thickness
0.032 in
Maximum Wire Size
10 AWG
Wire Rope Length
1.03 in

Details

Item
Wire Disconnect
Insulation
Full
For Use With
CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)
Color Code
Yellow
Connection Type
Crimp
Insulation Type
Vinyl
Wire Range
12 to 10 AWG
Seam
Sleeved Barrel
Connector Type
Quick Disconnect
Max. Temp.
194 Degrees F
Max. Voltage
600 V
Connection Material
Tin-Plated Brass
Standards
CSA Certified LR31212, UL Recognized E78522
Features
Flame Retardant
Barrel Type
Funnel
Maximum Voltage (kV)
0.6
Tongue Angle
Straight
Maximum Voltage (V)
600
Finish/Coating
Tin-Plated
Insulation Material
Vinyl
Product Type
Disconnect
Flammability Rating
UL94V-0
Standards Met
UL 310, CSA 22.2 No.153
Base Material
Brass
Disconnect Type
Female Disconnect
Contact Plating
Tin
Environmentally Friendly
Yes
Product Name
Terminal Connector
Connector Details
1 x Quick Disconnect
Product Color
Yellow
Product Material
Copper
Sub Brand
Pan-Term®
Packaging Type
Bottle
Special Features
Offering Secure Tool-Free Connections for Demanding Low-Voltage Projects
Maximum Voltage
600 V
Terminal Type
Socket
Insulation Coverage
Partial Coverage
Insulation Color
Yellow
Termination Style
Crimp
Disconnect Style
Quick Disconnect
Seam Style
Seamless

Description

Female Disconnect, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Standards CSA22.2 No. 153, UL 310 Recognized, Insulation Type Vinyl, Overall Length 1.03 in, Special Features Sleeved Barrel, Package Quantity 50
