  13. Wire Duct, Wide Slot, Gray, 4.25 W x 5 D

This item is Discontinued.

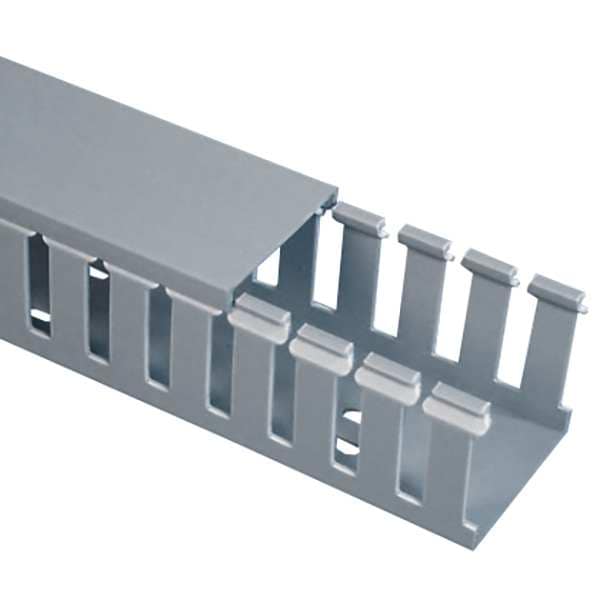

Panduit Wire Duct, Wide Slot, Gray, 4.25 W x 5 D G4X5LG6-A

Wire Duct, Wide Slot, Gray, 4.25 W x 5 D (Discontinued)

  • Mfr # G4X5LG6-A
  • Zoro # G2005446
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
G4X5LG6-A
Zoro #
G2005446
UPC #
074983546961
Country of Origin
United States

Dimensions

Length
72 in
Width
4 1/4 in
Height
5 1/8 in
Slot Height
4.1 in
Slot Width
0.3 in
Length (Straight Wireway)
6 ft
Nominal Width
4 in
Nominal Height
5 in
Overall Width (mm)
108
Overall Length (m)
1.8
Overall Height (mm)
129.5
Overall Height (In.)
5.1
Overall Length (ft.)
6
Slot Width (In.)
0.38
Overall Width (In.)
4.25
Slot Width (mm)
9.7

Details

Item
Wiring Duct
Wall Type
Slotted
Mounting Style
Screw Mount/Adhesive Back
Color
Gray
Material
Lead-Free PVC
Slot-to-Slot Centerline
1 3/10 in
Standards
CE Compliant, RoHS, UL Listed
Compatible Cover Style
Snap-On
Wiring Duct Style
Wide Slot Wiring Duct
Mount Method
Mounting Holes with Adhesive
Cover Part Number
C4LG6
Note
Adhesive tape is not meant for permanent mounting of wiring duct. One mounting hole on each end will be exposed for permanent mounting with fasteners. For best results, wiring duct should be applied to clean, dry, grease-free surfaces. We recommend the surface be cleaned prior to wiring duct installation
Measurement System
Imperial
Wiring Duct Type
G
Flammability Rating
UL94 V-0
Product Type
Base Wiring Duct
Application
Wide slot/finger design provides greater sidewall rigidity and can be used in a wide range of applications
Includes
Base Only
Additional Information
</li> </ul>Thickness: 0.12 inch</li><li>Mounting Holes: 1.50 inch</li></ul>
Product Color
Light Gray
Product Model
Type G
Product Line
Panduct
Certifications & Standards
</li> </ul>RoHS</li><li>CSA</li><li>UL94V-0</li><li>CE</li></ul>
Product Name
6ft Panduct Type G - Wide Slot Wiring Duct
Cable Manager Type
Cable Duct
Product Material
Polyvinyl Chloride (PVC)
Sub Brand
Panduct®
Standards Met
RoHS Compliant, UL Recognized, CE Compliant

Description

Wiring Duct, Wall Type Wide Slot, Width 4 1/4 in, Height 5 1/8 in, Slot Width 0.3 in, Material Lead-Free PVC, Color Gray, Mounting Style Screw Mount/Adhesive Back, Length 72 in, Slot Height 4.1 in, Slot-to-Slot Centerline 1 3/10 in, Standards CE Compliant, RoHS, UL Listed, Compatible Cover Style Snap-On, Nominal Height 5 in, Nominal Width 4 in
