  13. WiringDuct, Narrow, 1.75x1.98In, 6Ft, White

This item is Discontinued.

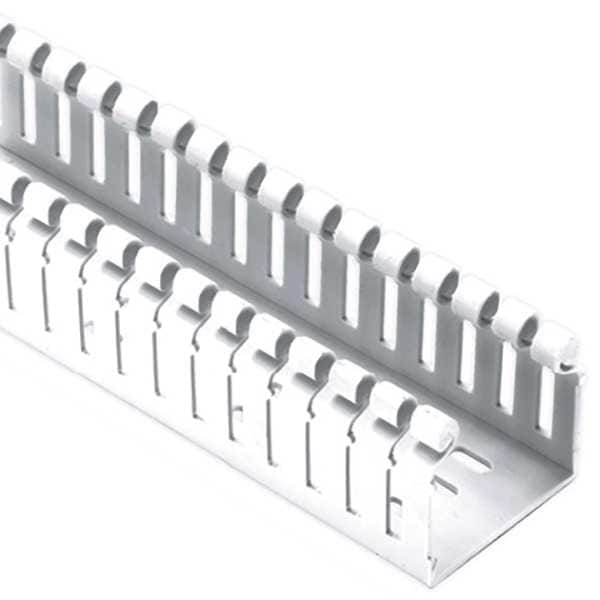

Panduit WiringDuct, Narrow, 1.75x1.98In, 6Ft, White HN1.5X2WH6

WiringDuct, Narrow, 1.75x1.98In, 6Ft, White (Discontinued)

  • Mfr # HN1.5X2WH6
  • Zoro # G1697884
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HN1.5X2WH6
Zoro #
G1697884
UPC #
074983028627
Country of Origin
United States

Dimensions

Length
72 in
Width
1 3/4 in
Height
2 in
Slot Height
1.6 in
Slot Width
0.2 in
Length (Straight Wireway)
6 ft
Nominal Height
2 in
Nominal Width
1 1/2 in
Overall Height (mm)
50.3
Slot Width (mm)
5
Overall Length (m)
1.8
Overall Length (ft.)
6
Overall Height (In.)
1.98
Overall Width (mm)
44.5
Slot Width (In.)
0.2
Overall Width (In.)
1.75

Details

Item
Wiring Duct for Hinged Covers
Wall Type
Slotted
Mounting Style
Screw Mount
Color
White
Material
PVC
Slot-to-Slot Centerline
1/2 in
Standards
CE Compliant, CSA Certified, RoHS, UL 94 Flammability Rating of V-0, UL Listed
Compatible Cover Style
Hinged
Application
Hinged Cover Narrow Slot Wiring Duct provides wire management in general purpose applications where it is beneficial to retain cover during wire changes
Includes
Base Only
Wiring Duct Style
Narrow Slot Wiring Duct
Product Type
Base Wiring Duct
Cover Part Number
HC1.5WH6
Measurement System
Imperial
Flammability Rating
UL94V-0
Mount Method
Mounting Holes
Wiring Duct Type
HN
Product Color
White
Product Name
Cable Guide Wiring Duct
Environmentally Friendly
Yes
Product Material
Polyvinyl Chloride (PVC)
Cable Manager Type
Wiring Duct
Sub Brand
Panduct®
Standards Met
RoHS Compliant; cURus Recognized; CE Compliant; CSA Approved

Description

Wiring Duct for Hinged Covers, Wall Type Narrow Slot, Width 1 3/4 in, Height 2 in, Slot Width 0.2 in, Material PVC, Color White, Mounting Style Screw Mount, Length 72 in, Slot Height 1.6 in, Slot-to-Slot Centerline 1/2 in, Standards CE Compliant, CSA Certified, RoHS, UL 94 Flammability Rating of V-0, UL Listed, Compatible Cover Style Hinged, Nominal Height 2 in, Nominal Width 1 1/2 in
