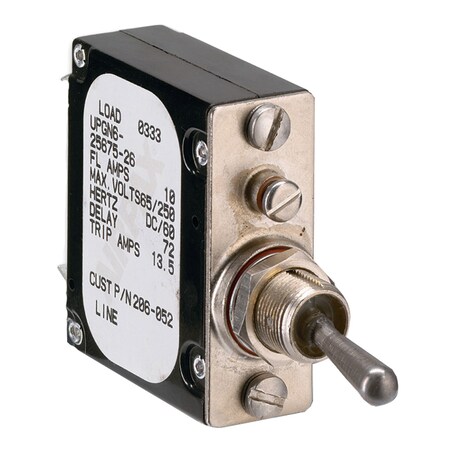

Circuit Breaker, 20A, 1 Pole, Not Rated, 2.5kA (Discontinued)

Panel Seal/Waterproof "A" Frame Magnetic Circuit Breakers , Branch AC or DC circuit breaker for Paneltronics electrical distribution panels, Meets all American Boat and Yacht Council (ABYC) Standards for non ignition protected circuit breakers, UL Recognized (UL 1077) for use in the USA and CSA Certified for use in Canada, Trip free (ABYC E-11.10.1.5.4 and E-11.10.2.1.1), Manual reset (ABYC E-11.10.1.5.6. and E-11.10.2.1.1) , Speficiations: , Handle Color: Metal with Silicon rubber seal, Maximum Amperage: 50 Amps, Maximum Voltage/AIC: 32 VDC/2500 Amps with no Back-up fuse (ABYC E-11.10.1.5.5), Rated Switch Cycles: Rated Switch Cycles 10,000 actuations at rated current and voltage, Electrical Hardware: Screw 10-32 x 3/8" pan combo head (P/N 197-188), Mounting Hardware: Hex nut 1/2-32 (supplied with circuit breaker), Lockwasher 1/2" internal tooth (supplied with circuit breaker), Optional Boot: Black silicone rubber (P/N 048-015).
