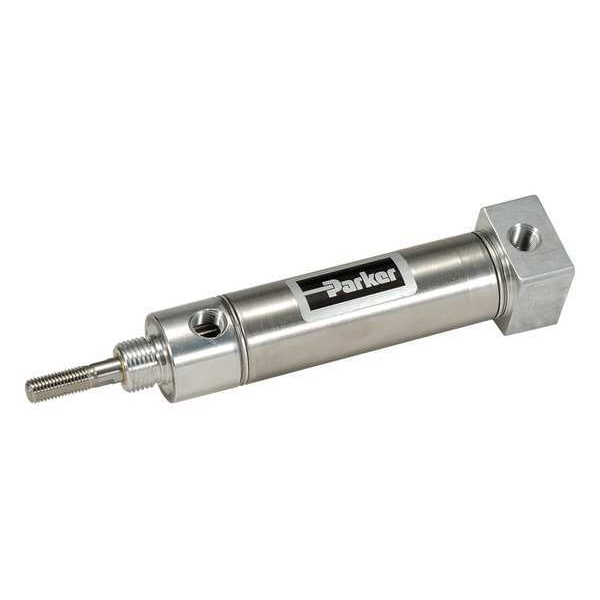

Air Cylinder, 3/4 in Bore, 4 in Stroke, Round Body Double Acting, Stainless Steel .
Mfr # 0.75BRDSRM04.00
Zoro # G6157435
product price: $68.15
/eaKey Features
Cylinder Action
Double Acting
Bore Dia.
3/4 in
Max. Pressure
250 psi
Body Material
Stainless Steel
Rod Dia.
0.25 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
0.75BRDSRM04.00
Zoro #
G6157435
UPC #
-
Country of Origin
United States
Dimensions
Bore Dia.
3/4 in
Rod Dia.
0.25 in
Overall Length
8.53 in
Rod Thread Length
3/4 in
Port Size
1/8 in FNPT
Dimension Cc
0.25 in
Dimension D
0.22 in
Dimension B
0.624 in
Dimension C
0.25 in
Dimension Kk
1/4"-28 UNF
Dimension A
3/4 in
Air Cylinder Bore Dia.
3/4 in
Rod Thread Size
1/4"-28
Nose Mount Thread Size
5/8"-18
Overall Width
1 in
Inlet Size
1/8 in
Overall Height
1 in
Rod Diameter
1/4 in
Stroke Length
4 in
Bore Diameter
3/4 in
Description
Air Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Block, Bore Diameter 3/4 in, Cushion Type None, Stroke Length 4 in, Inlet Size 1/8 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Mounting Location Rear, Body Material Grade 304, Overall Width 1 in, Overall Height 1 in, Inlet Gender Female
