Parker

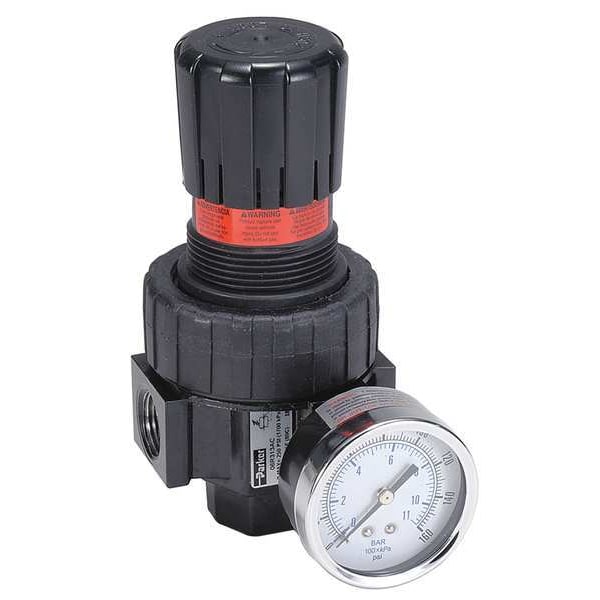

Air Regulator, 1/2 In. NPT, 90 cfm, 250 psi

product price: $204.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size - Regulators 1/2 in
  • Max. Inlet Pressure - Regulators 250 psi
  • Adjustment Range - Regulators 0 to 125 psi
  • Max. Temp. - Regulators 175 Degrees F
  • Overall Height - Regulators 6.4 in
See all product information

Product Information

Dimensions

Pipe Size - Regulators 1/2 in
Overall Height - Regulators 6.4 in
Overall Width - Regulators 3.24 in
Overall Length 3.25 in
Pipe Size (Regulators) 1/2"
Overall Height (Regulators) 6.40"
Overall Width (Regulators) 3.24"
Air Outlet Size 1/2 in
Overall Width 2 3/4 in
Air Inlet Size 1/2 in
Overall Height 6 in
Pressure Gauge Port Size 1/4 in
Overall Depth 3 1/4 in
Width 3.24"
Length 3.25"
Height 6.4"

Details

Item Compressed Air Regulator
Max. Inlet Pressure - Regulators 250 psi
Adjustment Range - Regulators 0 to 125 psi
Max. Temp. - Regulators 175 Degrees F
Max. Flow - Regulators 90 cfm
Adjustment Range (Regulators) 0 to 125 psi
Gauge Port 1/4 in NPT
Max. Inlet Pressure (Regulators) 250 psi
Body Material Zinc
Max. Temp. (Regulators) 175 Degrees F
Valve Design Balanced
Adjustment Knob Nonrising
Includes (2) Gauge Plugs and Face Gauge, Regulator
Max. Flow (Regulators) 90 cfm
Compressed Air Regulator Product Grouping General Purpose Air Regulator
Series 07R
Air Inlet Type NPT
Pressure Gauge Included Yes
Air Inlet Gender Female
Air Outlet Gender Female
Adjustment Location Top
Weight 2.5 lb
Modular Connection Modular Connection
Maximum Regulated Pressure 125 psi
Adjustment Mechanism Knob
Number of Air Inlets 1
Maximum Operating Temperature 175 Degrees F
Maximum Operating Pressure 125 psi
Minimum Operating Pressure 18 psig
Pressure Gauge Port Type NPT
For Substance Type Air
Minimum Operating Temperature 32 Degrees F
Number of Air Outlets 1
Air Outlet Type NPT
Regulator Type Relieving
System Location Air Line
For Fluid Type Air
Minimum Regulated Pressure 2 psi
Maximum Flow Rate 90 cfm
Adjustment Mechanism Material Steel
Seal Material Nitrile
Material Zinc/Plastic
Max. Pressure 250 psi

Description

Compressed Air Regulator, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 90 cfm, Maximum Operating Pressure 125 psi, Maximum Operating Temperature 175 Degrees F, Pressure Gauge Included Yes, Adjustment Mechanism Knob, Overall Width 2 3/4 in, Adjustment Location Top, System Location Air Line, Series 07R, Adjustment Mechanism Material Steel, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/2 in, Air Outlet Type NPT, Body Material Zinc, For Fluid Type Air
