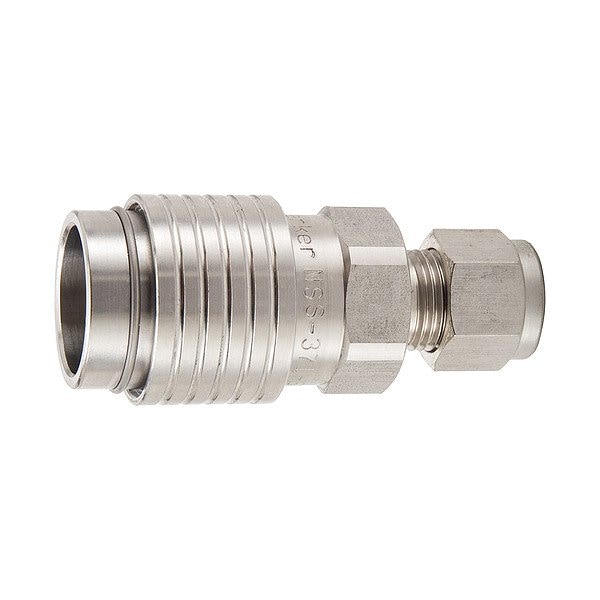

Body Assembly Coupling, Stainless Steel Body, Push-to-Connect Lock, 1/2" Thread Size
Mfr # NSS-371-8MA
Zoro # G016424088
product price:Â
$
174.99
/ea
Free Shipping & Returns
Key Features
Body Material
Stainless Steel
Seal Material
EPDM
Coupling Locking Type
Push-to-Connect
Thread Size
1/2"
Connection Type
Threaded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- NSS-371-8MA
- Zoro #
- G016424088
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Thread Size
- 1/2"
- Max. Outside Dia.
- 1 1/8 in
- Overall Length
- 1 11/16 in
- Coupling Size
- 3/8 in
- Wire Rope Length
- 1 11/16 in
- Length
- 1 11/16 in
Details
- Item
- Hydraulic Quick Connect Hose Coupling
- Body Material
- Stainless Steel
- Seal Material
- EPDM
- Coupling Locking Type
- Push-to-Connect
- Connection Type
- Threaded
- For Use With
- Chemical Transfer Lines, Cooling Lines, High Purity Systems, Lab Equipment
- Sleeve Material
- 316 Stainless Steel
- Temp. Range
- -70 Degrees to 250 Degrees F
- Valve Type
- Flat Face
- Includes Valve
- No
- Max. Flow Rate
- 37.85 lpm
- Coupling Component
- Socket
- Hose Fitting Gender
- Female
- Operating Temperature - Maximum
- 250 Degrees F
- Operating Temperature - Minimum
- -70 Degrees F
- Max. Working Pressure @ 70 F
- 2,000 psi
- Series
- NSS
Description
Body Assembly Coupling, Socket, Stainless Steel, Coupling Size 3/8 in, Female, Max. Flow Rate 37.854 lpm
