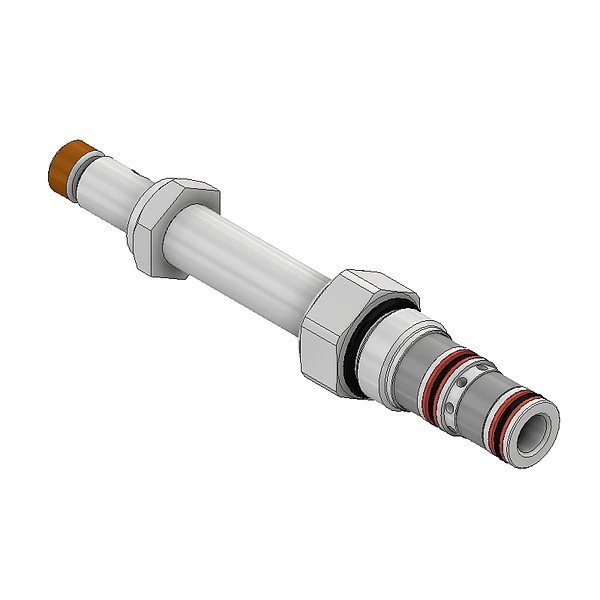

C10 SPOOL W/OVERRIDE 2P3W
Mfr # DSL083BT
Zoro # G315921004
product price: $112.99
/ea
Free Shipping & Returns
Key Features
Overall Length
2.47 in
Overall Width
1.33 in
Overall Height
4.04 in
Standards
ISO 4406 18/16/13, SAE Class 4
Number of Ways
Three-Way
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DSL083BT
Zoro #
G315921004
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
2.47 in
Overall Width
1.33 in
Overall Height
4.04 in
Valve Cavity Size
C08-3
Port Connection Dash Size
8
Port Connection Size
1.33
Details
Standards
ISO 4406 18/16/13, SAE Class 4
Number of Ways
Three-Way
Number of Positions
Two Positions
Series
DSL083
Item
Spool Valve
Body Material
Steel
Fluid Viscosity - Maximum
2,000 SUS
Body Finish
Zinc Plated
Flow Rate - Maximum
4 gpm
Operating Temperature - Maximum
200 Degrees F
Mounting
Screw-In
Includes Seals
Seals Included
Operating Temperature - Minimum
-35 Degrees F
Pressure Setting - Maximum
3,000 psi
Cartridge Material
Steel
Action Type
Direct Acting
Seal Material
Polyurethane
Description
Spool Valve, Body Material Steel, Number of Positions Two Positions, Valve Action Not Applicable, Adjustment Method Not Applicable, Number of Ways Three-Way, Valve Cavity Size C08-3, Overall Length 2.47 in, Overall Width 1.33 in, Overall Height 4.04 in, Flow Rate - Maximum 4 gpm, Voltage Not Applicable, Pressure Setting - Maximum 3,000 psi, Port Connection Dash Size 8, Center Position Not Applicable, Port Connection Type Not Applicable, Port Connection Gender Not Applicable
