  11. Cartridge Valve, Double PO Check, 15 GPM

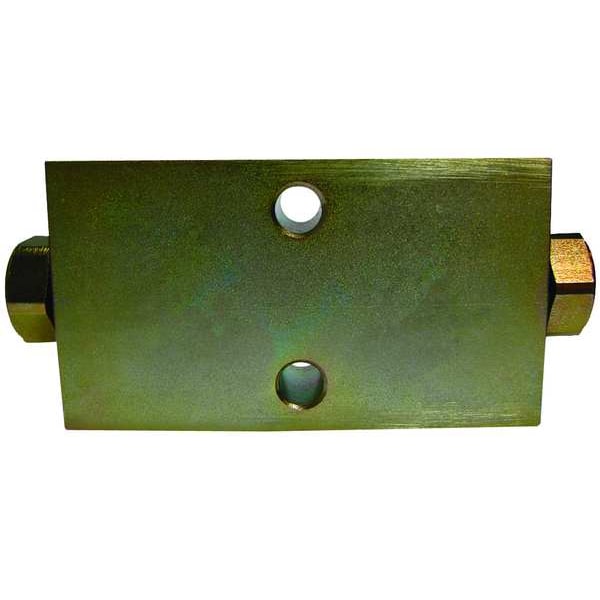

Parker Cartridge Valve, Double PO Check, 15 GPM CDPH103A20-8T - main

Cartridge Valve, Double PO Check, 15 GPM

  • Mfr # CDPH103A20-8T

  • Zoro # G2476835

product price: $261.94
/ea
Free Shipping & Returns

Key Features

Body Material
Steel
Number of Positions
Two Positions
Number of Ways
Two-Way
Valve Cavity Size
C10
Overall Height
1.25 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CDPH103A20-8T
Zoro #
G2476835
UPC #
-
Country of Origin
United States

Dimensions

Valve Cavity Size
C10
Overall Height
1.25 in
Overall Length
4.5 in
Overall Width
2.5 in
Port Connection Dash Size
-8

Details

Item
Cartridge Valve Assembly
Body Material
Steel
Number of Positions
Two Positions
Number of Ways
Two-Way
Max. Pressure (PSI)
5000
Valve Type
Dual Pilot-Operated Cartridge Check Valve
Max. Flow - Hydraulic Valves
15 gpm
Max. Pressure - Hydraulic Valves
5,000 psi
Max. Flow GPM
15
Cartridge Valve Type
Double Pilot-Operated Check
Cartridge Valve Item
Cartridge Valve Assembly
Application
Used to Block Flow in One Direction, But Can be Opened Once Adequate Pilot Pressure is Applied to the Pilot Piston
Termination
SAE #8
Standards
ISO 4406 18/16/13
Operating Temperature - Minimum
-35 Degrees F
Includes Seals
Seals Included
Fluid Viscosity - Maximum
2,000 SUS
Cartridge Material
Steel
Venting
Non-Vented
Valve Action
Normally Closed
Valve Control
Directional Control
Body Finish
Zinc Plated
Operating Temperature - Maximum
200 Degrees F
Control Direction
One-Way
Inlet Pressure - Maximum
5,000 psi
Flow Rate - Maximum
16 gpm
Pressure Setting - Maximum
5,000 psi
Mounting
Inline
Actuation Mechanism
Pressure
Includes Filter
Filter Not Included
Series
CDPH103
For Media
Mineral Oil, Synthetic Oil
Seal Material
Polyurethane
Leakage
0.13 cc/min
Port Connection Type
SAE 45 Degrees Flare
Port Connection Gender
Female

Description

Cartridge Valve Assembly, Body Material Steel, Number of Positions Two Positions, Valve Action Normally Closed, Adjustment Method Not Applicable, Number of Ways Two-Way, Valve Cavity Size C10, Actuation Mechanism Pressure, Overall Length 4.5 in, Overall Width 2.5 in, Overall Height 1.25 in, Flow Rate - Maximum 16 gpm, Voltage Not Applicable, Pressure Setting - Maximum 5,000 psi, Port Connection Dash Size -8, Valve Type Dual Pilot-Operated Cartridge Check Valve

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
