  11. Cartridge Valve, PC Flow Control, 12 GPM

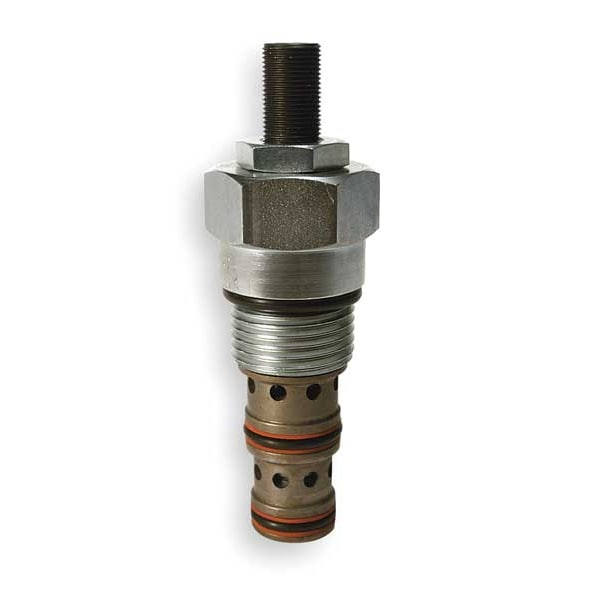

Parker Cartridge Valve, PC Flow Control, 12 GPM J04D3ZN - main

Cartridge Valve, PC Flow Control, 12 GPM

  • Mfr # J04D3ZN

  • Zoro # G1368272

product price: $204.99
/ea
Free Shipping & Returns

Key Features

Body Material
Steel
Number of Positions
Three Positions
Number of Ways
Three-Way
Valve Cavity Size
C10-3
Overall Height
1.91 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
J04D3ZN
Zoro #
G1368272
UPC #
-
Country of Origin
United Kingdom

Dimensions

Valve Cavity Size
C10-3
Overall Height
1.91 in
Overall Length
3.77 in
Overall Width
1.023 in

Details

Item
Cartridge Valve
Body Material
Steel
Number of Positions
Three Positions
Number of Ways
Three-Way
Max. Pressure (PSI)
6000
Valve Type
Pressure-Compensated Flow Control Valve
Max. Flow GPM
12
Cartridge Valve Item
Cartridge Valve
Max. Pressure - Hydraulic Valves
6,000 psi
Cartridge Valve Type
Pressure Compensated Flow Control w/Bypass
Application
Used to Maintain a Controlled Flow Regardless of Changes in Load or Inlet Pressure
Valve Cavity
C10-3
Max. Flow - Hydraulic Valves
12 gpm
Way
3
Includes Seals
Seals Included
Standards
ISO 4406 18/16/13
Seal Material
Nitrile
Fluid Viscosity - Maximum
2,000 SUS
Operating Temperature - Maximum
250 Degrees F
For Media
Mineral Oil, Synthetic Oil
Cartridge Material
Steel
Inlet Pressure - Maximum
6,000 psi
Adjustment Method
Screw
Pressure Setting - Maximum
6,000 psi
Includes Filter
Filter Not Included
Flow Rate - Maximum
12 gpm
Body Finish
Zinc Plated
Operating Temperature - Minimum
-30 Degrees F
Valve Control
Flow Control
Valve Action
Normally Open
Mounting
Block-Mounted
Actuation Mechanism
Pressure

Description

Cartridge Valve, Body Material Steel, Number of Positions Three Positions, Valve Action Normally Open, Adjustment Method Screw, Number of Ways Three-Way, Valve Cavity Size C10-3, Actuation Mechanism Pressure, Overall Length 3.77 in, Overall Width 1.023 in, Overall Height 1.91 in, Flow Rate - Maximum 12 gpm, Voltage Not Applicable, Pressure Setting - Maximum 6,000 psi, Port Connection Dash Size Not Applicable, Valve Type Pressure-Compensated Flow Control Valve, Port Connection Type Not Applicable
