Parker

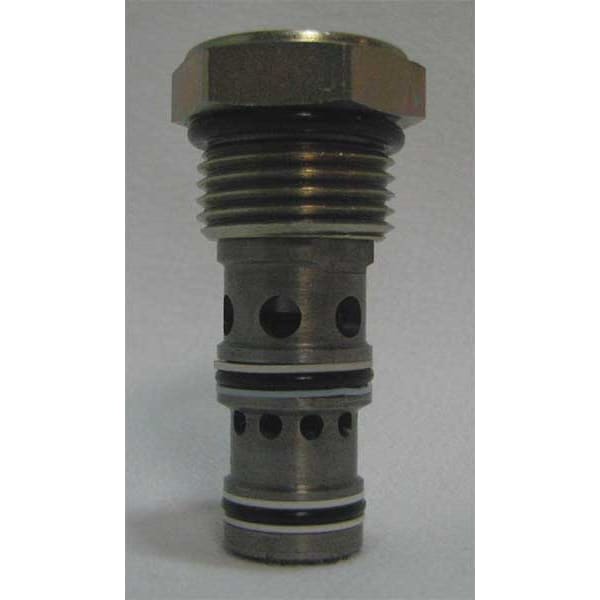

Cartridge Valve, Shuttle, 10 GPM

product price: $67.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cartridge Valve Type Shuttle
  • Valve Cavity Size C10-3
  • Max. Flow - Hydraulic Valves 10 gpm
  • Max. Pressure - Hydraulic Valves 5,000 psi
  • Way 3
See all product information

Product Information

Dimensions

Valve Cavity Size C10-3
Overall Width 1 in
Overall Height 0.31 in
Overall Length 2.17 in
Hex Size 1 in

Details

Cartridge Valve Item Cartridge Valve
Cartridge Valve Type Shuttle
Max. Flow - Hydraulic Valves 10 gpm
Max. Pressure - Hydraulic Valves 5,000 psi
Item Cartridge Valve
Way 3
Valve Type Shuttle
Max. Pressure (PSI) 5000
Max. Flow GPM 10
Application Used in Load Sense Circuits as Well as Brake Circuits to Divert the Highest Pressure from Two Inlet Signals to a Single Outlet Signal
Valve Cavity C10-3
Number of Ways Two-Way
Number of Positions Two Positions
Body Material Steel
Body Finish Zinc Plated
Inlet Pressure - Maximum 5,000 psi
Series CSH101B
Includes Filter Filter Not Included
Operating Temperature - Minimum -30 Degrees F
Flow Rate - Maximum 10 gpm
Includes Seals Seals Included
Cartridge Material Steel
Return Mechanism Pressure
Pressure Setting - Maximum 5,000 psi
Mounting Block-Mounted
Seal Material Nitrile
Standards ISO 4406 18/16/13
Leakage 0.5 cc/min
Operating Temperature - Maximum 250 Degrees F
Fluid Viscosity - Maximum 2,000 SUS
Control Direction Two-Way
For Media Mineral Oil, Synthetic Oil
Actuation Mechanism Pressure
Valve Control Directional Control
Venting Non-Vented

Description

Cartridge Valve, Body Material Steel, Number of Positions Two Positions, Valve Action Not Applicable, Adjustment Method Not Applicable, Number of Ways Two-Way, Valve Cavity Size C10-3, Actuation Mechanism Pressure, Overall Length 2.17 in, Overall Width 1 in, Overall Height 0.31 in, Flow Rate - Maximum 10 gpm, Voltage Not Applicable, Pressure Setting - Maximum 5,000 psi, Port Connection Dash Size Not Applicable, Valve Type Cartridge Shuttle Valve, Port Connection Type Not Applicable
