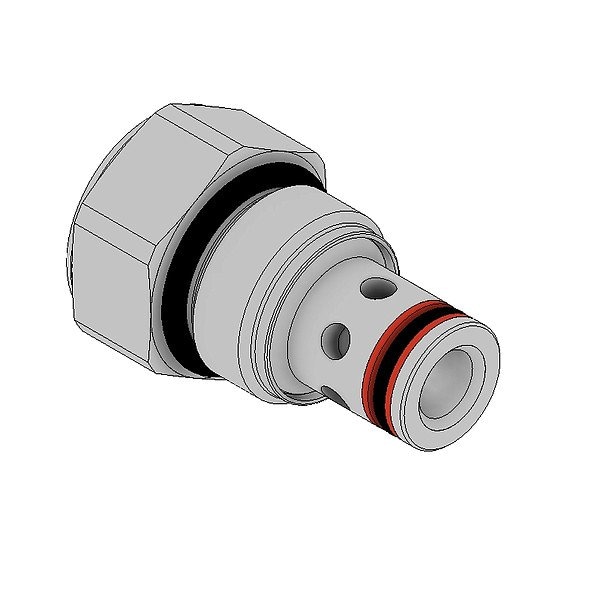

Check Valve, 10 gpm, Zinc Coated

  • Mfr # CVH081P30
  • Zoro # G915920896
product price:
$
20.59
/ea

Key Features

Overall Width
0.875 in
Number of Ways
Two-Way
Overall Height
1.51 in
Standards
ISO 4406 18/16/13, SAE Class 4
Series
CVH081P
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
CVH081P30
Zoro #
G915920896
UPC #
-
Country of Origin
Mexico
Number of Ways
Two-Way
Standards
ISO 4406 18/16/13, SAE Class 4
Series
CVH081P
Reverse Free Flow
Reverse Free Flow
Item
Check Valve
Body Material
Steel
Valve Type
Check
Fluid Viscosity - Maximum
2,000 SUS
Body Finish
Zinc Coated
For Media
Oil
Actuation Mechanism
Pressure
Flow Rate - Maximum
10 gpm
Operating Temperature - Minimum
-35 Degrees F
Cracking Pressure
30 psi
Operating Temperature - Maximum
200 Degrees F
Includes Seals
Seals Included
Pressure - Maximum
5,000 psi
Pressure Setting - Maximum
5,000 psi
Cartridge Material
Steel
Seal Material
Polyurethane
Action Type
Direct Acting

Dimensions

Overall Width
0.875 in
Overall Height
1.51 in
Overall Length
0.875 in
Outlet Connection Dash Size
8
Wrench Flat Size
7/8 in
Inlet Connection Dash Size
8
Port Connection Size
0.875
Port Connection Dash Size
8
Valve Cavity Size
C08-2
Wire Rope Length
0.875 in
Length
0.875 in

Description

Check Valve, Body Material Steel, Valve Action Not Applicable, Adjustment Method Not Applicable, Number of Ways Two-Way, Valve Cavity Size C08-2, Actuation Mechanism Pressure, Overall Length 0.875 in, Overall Width 0.875 in, Overall Height 1.51 in, Flow Rate - Maximum 10 gpm, Voltage Not Applicable, Pressure Setting - Maximum 5,000 psi, Port Connection Dash Size 8, Center Position Not Applicable, Port Connection Type Not Applicable, Port Connection Gender Not Applicable
