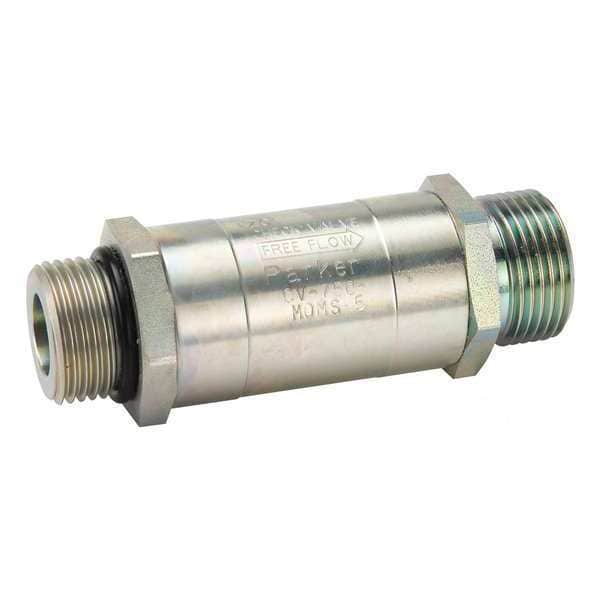

Check Valve, 1.75" L x 0.81" W x 0.81" H

  • Mfr # CV-370-MOMS-5

  • Zoro # G9896516

product price:
$
68.49
/ea

Key Features

Outlet Port Size - Hydraulic Valves
11/16-16 in Male Seal-Lok(R)
Size
3/8"
Max. Pressure - Hydraulic Valves
3,000 psi
Valve Type - Hydraulic Valves
Hydraulic Check Valve
Reverse Free Flow
Reverse Free Flow
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CV-370-MOMS-5
Zoro #
G9896516
UPC #
-
Country of Origin
United States

Dimensions

Outlet Port Size - Hydraulic Valves
11/16-16 in Male Seal-Lok(R)
Size
3/8"
Length (In.)
1.75 in
Width (In.)
0.81 in
Height (In.)
0.81 in
Inlet Port Size - Hydraulic Valves
9/16"-18 Male O-Ring Boss
Inlet Connection Dash Size
18
Port-to-Port Length
1.75 in
Outlet Connection Dash Size
16
Outlet Connection Size
11/16 in
Overall Width
0.81 in
Wrench Flat Size
3/4 in
Overall Height
0.81 in
Overall Length
1.75 in
Inlet Connection Size
9/16 in
Wire Rope Length
1.75 in
Length
1.75 in

Details

Max. Pressure - Hydraulic Valves
3,000 psi
Valve Type - Hydraulic Valves
Hydraulic Check Valve
Reverse Free Flow
Reverse Free Flow
Type
Steel (Hard Seat)
Max. Flow - Hydraulic Valves
13 gpm
Item
Hydraulic Check Valve
Body Material - Hydraulic Valves
Steel
Actuation Mechanism
Manual
Control Direction
One-Way
Port Connections
Inlet, Outlet
Outlet Connection Gender
Male
Pressure - Maximum
3,000 psi
Mounting
Screw-In
Seal Material
Elastomeric; Metal
Body Material
Steel
Valve Type
Check
Operating Temperature - Minimum
-40 Degrees F
Includes Seals
Seals Included
Outlet Connection Type
SAE O-Ring Face Seal
Inlet Connection Type
SAE O-Ring Boss
Valve Control
Directional Control
Operating Temperature - Maximum
250 Degrees F
Flow Rate - Maximum
13 gpm
Series
CV
Cracking Pressure
5 psi
Inlet Connection Gender
Male

Description

Hydraulic Check Valve, Pressure - Maximum 3,000 psi, Body Material Steel, Valve Type Check, Port-to-Port Length 1.75 in, Control Direction One-Way, Mounting Screw-In, Reverse Free Flow Reverse Free Flow, Flow Rate - Maximum 13 gpm, Inlet Connection Type SAE O-Ring Boss, Inlet Connection Gender Male, Outlet Connection Gender Male, Operating Temperature - Maximum 250 Degrees F, Operating Temperature - Minimum -40 Degrees F, Outlet Connection Type SAE O-Ring Face Seal, Includes Seals Seals Included
