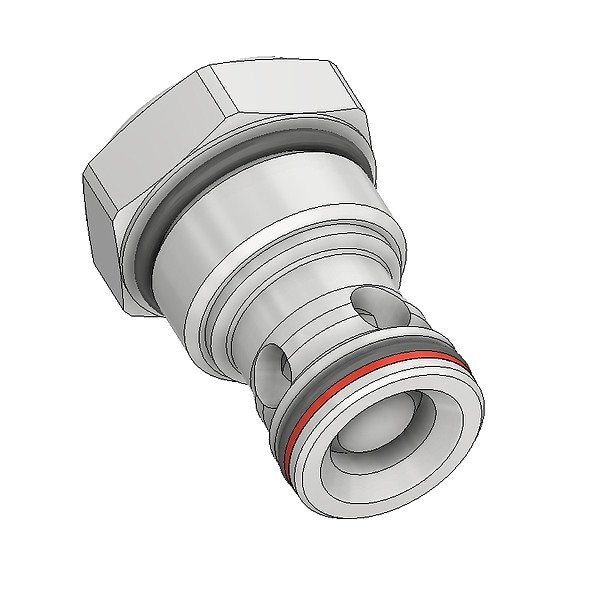

Check Valve, 60 gpm, Zinc Coated
- Mfr # CVH161P
- Zoro # G315920939
product price:Â
$
88.69
/ea
Key Features
Overall Height
2.26 in
Standards
ISO 4406 18/16/13, SAE Class 4
Overall Width
1.5 in
Reverse Free Flow
Reverse Free Flow
Series
CVH161P
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CVH161P
- Zoro #
- G315920939
- UPC #
- -
- Country of Origin
- Mexico
- Standards
- ISO 4406 18/16/13, SAE Class 4
- Reverse Free Flow
- Reverse Free Flow
- Series
- CVH161P
- Number of Ways
- Two-Way
- Item
- Check Valve
- Flow Rate - Maximum
- 60 gpm
- For Media
- Oil
- Includes Seals
- Seals Included
- Pressure - Maximum
- 5,000 psi
- Cracking Pressure
- 5 psi
- Seal Material
- Polyurethane
- Valve Type
- Check
- Operating Temperature - Maximum
- 250 Degrees F
- Fluid Viscosity - Maximum
- 2,000 SUS
- Actuation Mechanism
- Pressure
- Body Finish
- Zinc Coated
- Body Material
- Steel
- Operating Temperature - Minimum
- -30 Degrees F
- Action Type
- Direct Acting
- Cartridge Material
- Steel
- Pressure Setting - Maximum
- 5,000 psi
Dimensions
- Overall Height
- 2.26 in
- Overall Width
- 1.5 in
- Overall Length
- 1.5 in
- Outlet Connection Dash Size
- 16
- Inlet Connection Dash Size
- 16
- Wrench Flat Size
- 1 1/2 in
- Valve Cavity Size
- C16-2
- Port Connection Size
- 1.5
- Port Connection Dash Size
- 16
- Wire Rope Length
- 1.5 in
- Length
- 1.5 in
Description
Check Valve, Body Material Steel, Valve Action Not Applicable, Adjustment Method Not Applicable, Number of Ways Two-Way, Valve Cavity Size C16-2, Actuation Mechanism Pressure, Overall Length 1.5 in, Overall Width 1.5 in, Overall Height 2.26 in, Flow Rate - Maximum 60 gpm, Voltage Not Applicable, Pressure Setting - Maximum 5,000 psi, Port Connection Dash Size 16, Center Position Not Applicable, Port Connection Type Not Applicable, Port Connection Gender Not Applicable, Action Type Direct Acting
