Parker

Compressed Air Filter, 250 psi, 2.81 In. W

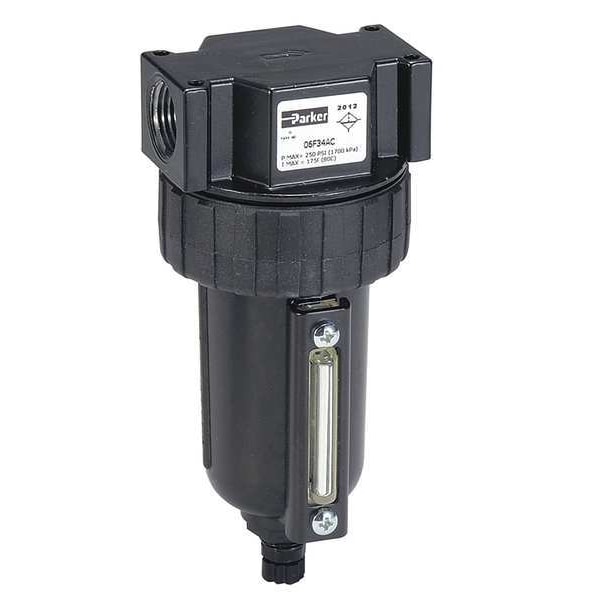

Parker Compressed Air Filter, 250 psi, 2.81 In. W 06F34BC
Tap to zoom
Hover or click to zoom
$163.43
  • Item - Air Filters: General Purpose Filter
  • Filter Rating - Air Treatment: 5 micron
  • Connection Size - Air Treatment: 1/2 in NPT
See full product details
This item ships free.

Total: $163.43

Parker #06F34BC Specifications

  • Item - Air Filters: General Purpose Filter
  • Filter Rating - Air Treatment: 5 micron
  • Connection Size - Air Treatment: 1/2 in NPT
  • Max. Incoming Pressure - Air Treatment: 250 psi
  • Max. Flow - Air Treatment: 85 cfm
  • Bowl Material - Air Treatment: Zinc
  • Size - Air Treatment: Compact
  • Bowl Size - Air Treatment: 4.4 oz
  • For Removal Of: Particles, Water
  • Bowl Material: Die Cast Zinc
  • Bowl Size: 4.4 oz.
  • Pipe Size: 1/2" NPT
  • Overall Width: 2.81 in
  • Housing Material: Zinc
  • Item: Compressed Air Filter
  • Includes: Air Filter, Drain and Element, Metal Bowl, Sight Glass
  • Size: Compact
  • Drain Type: Manual
  • Filter Media: Polypropylene
  • Max. Pressure: 250 psi
  • Drain Port Size: Push Type
  • Overall Height: 6.22 in
  • Max. Temp.: 175 Degrees F
  • Filter Rating: 5 micron
  • Filter Bowl Guard Included: Yes
  • Maximum Operating Temperature: 175 Degrees F
  • Differential Pressure Indicator Included: No
  • Air Inlet Size: 1/2 in
  • System Location: Air Line
  • Sight Gauge Included: Yes
  • Inlet Size: 1/2 in NPT
  • Air Outlet Type: NPT
  • Filter Type: Particulate
  • For Substance Type: Liquid Water, Oil, Particles
  • Seal Material: Nitrile
  • Body Material: Zinc
  • For Fluid Type: Oil, Water
  • Weight: 1.4 lb
  • Duty Rating: Heavy Duty
  • Drain Included: Yes
  • Number of Air Inlets: 1
  • Air Outlet Size: 1/2 in
  • Filter Type (Broad from Filter Rating): Particulate
  • Series: 06F
  • Minimum Operating Temperature: 32 Degrees F
  • Modular Connection: Modular Connection
  • Air Inlet Type: NPT
  • Filter Element Material: Plastic
  • Maximum Flow Rate: 85 cfm
  • Filter Bowl Material: Metal
  • Filter Bowl Capacity: 4.4 oz
  • Pressure Drop: 5 psig
  • Drain Part Compatibility: PS512P
  • Overall Depth: 2 3/4 in
  • Filter Bowl Guard Material: Steel
  • Filter Type (Broad from Filter Type): Particulate
  • Maximum Operating Pressure: 250 psi
  • Number of Air Outlets: 1
  • Country of Origin (subject to change): United States

Description

Compressed Air Filter, Filter Rating - Air Treatment 5 micron, Connection Size - Air Treatment 1/2 in NPT, Max. Incoming Pressure - Air Treatment 250 psi, Max. Flow - Air Treatment 85 cfm, Bowl Material - Air Treatment Zinc, Size - Air Treatment Compact, Bowl Size - Air Treatment 4.4 oz, Max. Temp. 175 Degrees F, Drain Port Size Push Type, Manual Drain Type, Polypropylene Filter Media, Housing Material Zinc, Overall Height 6.22 in, Overall Width 2.81 in
