Parker

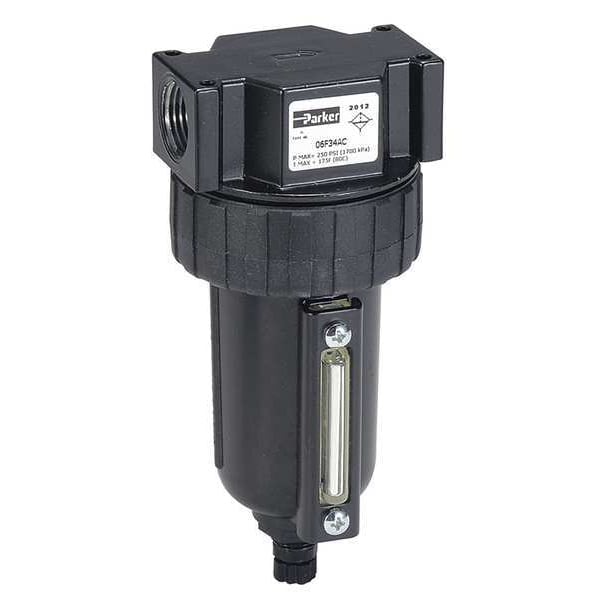

Compressed Air Filter, 250 psi, 3.24 In. W

Parker Compressed Air Filter, 250 psi, 3.24 In. W 07F44BC
Tap to zoom
Hover or click to zoom
$136.81
  • Item - Air Filters: General Purpose Filter
  • Filter Rating - Air Treatment: 5 micron
  • Connection Size - Air Treatment: 3/4 in NPT
See full product details
This item ships free.

Total: $136.81

Parker #07F44BC Specifications

  • Item - Air Filters: General Purpose Filter
  • Filter Rating - Air Treatment: 5 micron
  • Connection Size - Air Treatment: 3/4 in NPT
  • Max. Incoming Pressure - Air Treatment: 250 psi
  • Max. Flow - Air Treatment: 145 cfm
  • Bowl Material - Air Treatment: Zinc
  • Size - Air Treatment: Standard
  • Bowl Size - Air Treatment: 7.2 oz
  • For Removal Of: Particles, Water
  • Max. Temp.: 175 Degrees F
  • Overall Height: 7.67 in
  • Housing Material: Zinc
  • Item: Compressed Air Filter
  • Pipe Size: 3/4" NPT
  • Size: Standard
  • Drain Type: Manual
  • Bowl Size: 7.2 oz.
  • Max. Pressure: 250 psi
  • Filter Rating: 5 micron
  • Includes: Air Filter, Drain and Element, Metal Bowl, Sight Glass
  • Overall Width: 3.24 in
  • Bowl Material: Die Cast Zinc
  • Drain Port Size: Push Type
  • Filter Media: Polypropylene
  • Air Inlet Type: NPT
  • Maximum Operating Temperature: 175 Degrees F
  • Duty Rating: Heavy Duty
  • Seal Material: Nitrile
  • Series: 07F
  • Filter Element Material: Plastic
  • Number of Air Inlets: 1
  • System Location: Air Line
  • Drain Included: Yes
  • Filter Bowl Guard Included: Yes
  • Sight Gauge Included: Yes
  • Modular Connection: Modular Connection
  • For Substance Type: Liquid Water, Oil, Particles
  • Filter Bowl Capacity: 7.2 oz
  • Drain Part Compatibility: PS512P
  • Pressure Drop: 5 psig
  • Filter Bowl Guard Material: Steel
  • Body Material: Zinc
  • Differential Pressure Indicator Included: No
  • Filter Type (Broad from Filter Type): Particulate
  • Overall Depth: 3 1/4 in
  • Minimum Operating Temperature: 32 Degrees F
  • Maximum Flow Rate: 145 cfm
  • Maximum Operating Pressure: 250 psi
  • Filter Type: Particulate
  • Filter Type (Broad from Filter Rating): Particulate
  • Number of Air Outlets: 1
  • Air Outlet Type: NPT
  • Weight: 2.2 lb
  • Air Inlet Size: 3/4 in
  • Air Outlet Size: 3/4 in
  • For Fluid Type: Oil, Water
  • Inlet Size: 3/4 in NPT
  • Filter Bowl Material: Metal
  • Country of Origin (subject to change): United States

Description

Compressed Air Filter, Filter Rating - Air Treatment 5 micron, Connection Size - Air Treatment 3/4 in NPT, Max. Incoming Pressure - Air Treatment 250 psi, Max. Flow - Air Treatment 145 cfm, Bowl Material - Air Treatment Zinc, Size - Air Treatment Standard, Bowl Size - Air Treatment 7.2 oz, Max. Temp. 175 Degrees F, Drain Port Size Push Type, Manual Drain Type, Polypropylene Filter Media, Housing Material Zinc, Overall Height 7.67 in, Overall Width 3.24 in
