Shop All Pneumatic Lubricators
Parker

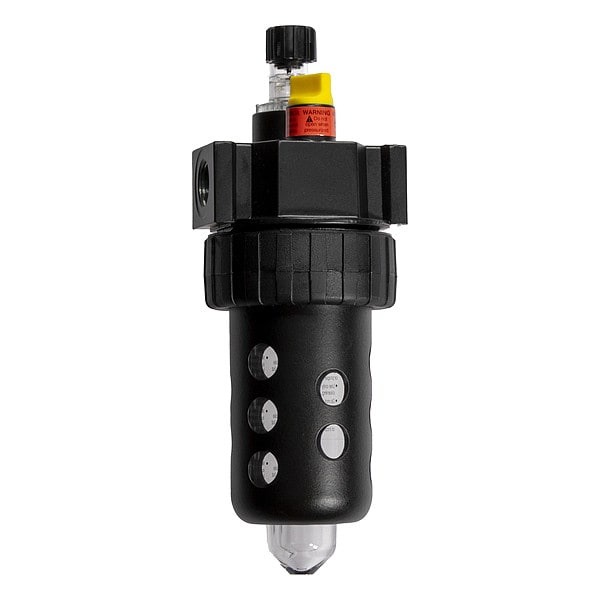

Compressed Air Lubricator, Zinc, 2 13/16"W

product price: $119.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series Series 16L
  • Overall Height 7 13/16 in
  • Overall Width 2 13/16 in
  • Modular Connection Modular Connection
  • Body Material Zinc
See all product information

Product Information

Dimensions

Overall Height 7 13/16 in
Overall Width 2 13/16 in
Air Inlet Size 3/8 in

Details

Item Lubricator
Series Series 16L
Modular Connection Modular Connection
Body Material Zinc
Minimum Operating Pressure 0 psig
Sight Dome Included Yes
Lubricator Bowl Capacity 2.6 oz
Maximum Operating Pressure 250 psig
Air Inlet Type NPT
Drain Included No
Minimum Operating Temperature 32 Degrees F
For Substance Type Air
Sight Gauge Included Yes
For Fluid Type Air, Gas
Maximum Operating Temperature 175 Degrees F
Lubricator Bowl Material Polycarbonate
Adjustment Mechanism Knob
Lubricator Bowl Guard Material Steel
Recommended Lubricant F442 Oil
Minimum Flow Rate 1 scfm
Lubricator Type Micro Mist
Weight 1.2 lb
Seal Material Nitrile
Pressure Drop 5 psig
Maximum Flow Rate 90 scfm
Lubricator Bowl Guard Included Yes

Description

Lubricator, Lubricator Type Micro Mist, Lubricator Bowl Material Polycarbonate, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 90 scfm, Maximum Operating Pressure 250 psig, Maximum Operating Temperature 175 Degrees F, Adjustment Mechanism Knob, Body Material Zinc, Overall Width 2 13/16 in, Series Series 16L, Sight Dome Included Yes, Sight Gauge Included Yes, Drain Included No, For Fluid Type Air, Gas, For Substance Type Air, Lubricator Bowl Capacity 2.6 oz
