Coupler
Mfr # 20KATS04MPN
Zoro # G116315439
product price: $35.69
/eaKey Features
Material
Brass
Coupling Component
Plug
Connection Type
Hose Barb
Hose Fitting Size
3/16 in
Finish/Coating
Nickel-Plated
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
20KATS04MPN
Zoro #
G116315439
UPC #
-
Country of Origin
Germany
Dimensions
Hose Fitting Size
3/16 in
Thread Size
M4
Body Size - Quick Connect Air Couplings
1/8 in
Barb Size
3/16 in
Details
Item
Quick Connect Air Coupling
Material
Brass
Coupling Component
Plug
Connection Type
Hose Barb
Finish/Coating
Nickel-Plated
Max. Flow Rate
165 lpm
Seal Material
HNBR
Includes Valve
Yes
Temp. Range
-4 Degrees to 212 Degrees F
Standards
ATEX, RoHS
Valve Type
Standard
Barbed
Yes
For Use With
Gas, Liquids, Pneumatic
For Hose I.D.
3/16 in
Coupling Locking Type
Push-to-Connect
Interchange Type
European Profile
Max. Working Pressure @ 70 F
35 bar
Hose Fitting Gender
Female
Description

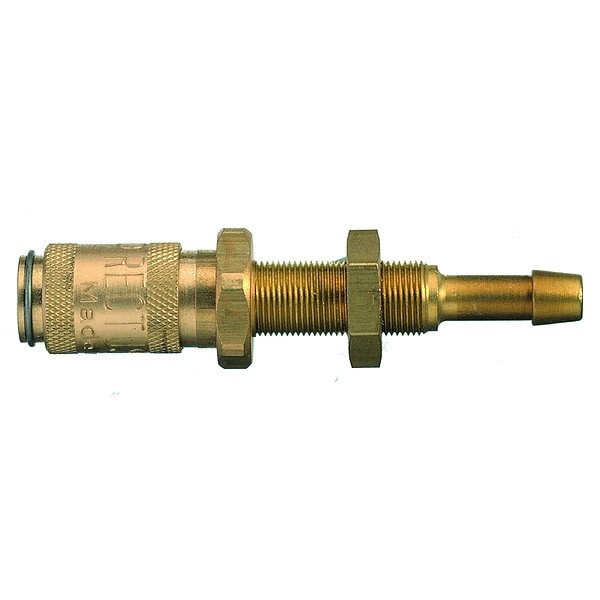

The PARKER - 20KATS04MPN is a coupler for tool-free connection and disconnection of hoses or lines using mating male and female halves. It includes an internal valve that closes upon disconnection, for isolating flow when disconnected and enabling fast hose changes. The coupler is compatible with the fluids and systems within the specified ratings, for use with hoses having a 4 mm inner diameter, and features a barbed hose tail connection.
Key Features:
- Material: Brass construction with a nickel-plated finish for surface treatment.
- Connection Type: Hose Barb for secure hose attachment.
- Body Size: 2 45/64 mm nominal connection size.
- Max. flow rate: 165 liters per minute (rated).
- Includes Valve: Yes, featuring a standard-type valve mechanism.
- Seal Material: NBR (Nitrile) seals for fluid and pressure containment.
- Temperature range: -4°F to 212°F (-20°C to 100°C).
- Valve Type: Standard valve integrated for flow control during connection and disconnection.
