Coupler Body, Brass, Hose Barb, 110 cfm
Mfr # B36-7B
Zoro # G4882857
Key Features
Specifications
Product Information
Dimensions
Details
Description

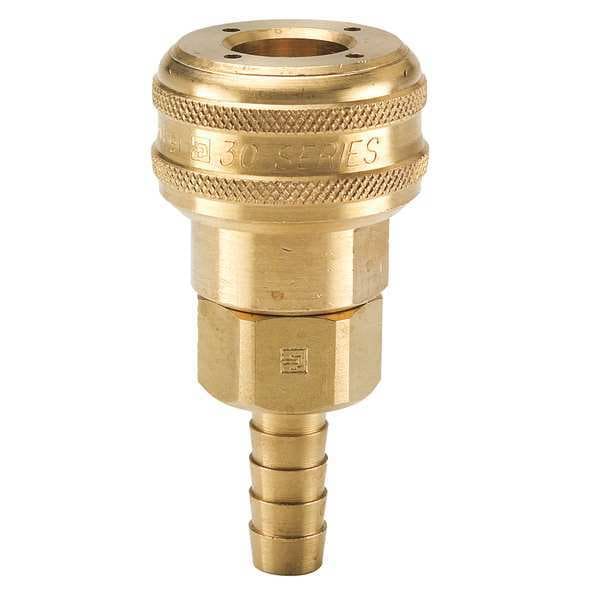

The PARKER - B36-7B is a brass quick connect hose coupling designed for pneumatic applications. It features a push-to-connect locking mechanism for rapid, tool-free connection and disconnection of hoses with a nominal hose inner diameter of 3/4 in. The fitting includes an integrated tubular valve to control air flow and is rated for use within specified pneumatic operating conditions (including maximum working pressure of 300 psi at 70°F) when properly installed with compatible components. It is compatible with specified industrial interchange standards when used with compatible fittings and hoses of the stated sizes and is rated for a maximum working pressure of 300 psi at 70°F.
Key Features:
- Application: Pneumatic
- Material: Brass
- Connection Type: Hose Barb with Male fitting gender
- Barb Size: 3/4 in
- Hose Fitting Size: 3/4 in
- For Hose I.D.: 3/4 in
- Coupling Size: 1/2 in with socket coupling component
- Coupling Locking Type: Push-to-Connect
- Includes Valve: Yes, Tubular type
- Max. Flow Rate: 3,114.85 liters per minute
- Max. Working Pressure @ 70°F: 300 psi
- Temperature Range: -40°F to 250°F
- Seal Material: Nitrile
- Overall Length: 3.63 in
- Max. Outside Diameter: 1.5 in
- Interchange Type: Industrial
