Coupler Body, Brass, Push On, 25 cfm
Mfr # B10-5BP
Zoro # G4874545
Key Features
Specifications
Product Information
Dimensions
Details
Description

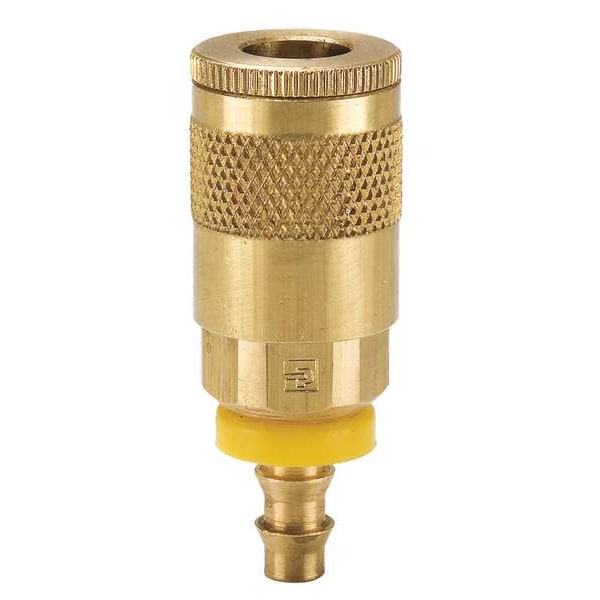

The PARKER - B10-5BP is a quick connect hose coupling designed for pneumatic applications. It is designed for manual coupling and uncoupling without requiring tools, and features a sleeve locking mechanism. The coupling includes a tubular valve intended to regulate air flow when coupling or uncoupling. It is compatible with hose inner diameters of 3/8 in and has a 1/4 in body size and coupling size. Brass construction with a nitrile seal, it is rated for use with pneumatic air lines at the specified pressure and temperature ranges and includes a nitrile seal for sealing. The fitting has a maximum working pressure: 300 psi at 70°F (see specifications for operating limits), and an overall length of 2.50 in.
Key Features:
- Application: Pneumatic
- Connection Type: Hose Barb
- Hose Fitting Gender: Male
- Barb Size: 3/8 in for hose connection
- Coupling Locking Type: Sleeve
- Coupling Component: Socket
- Interchange Type: Tru-Flate-Automotive
- Includes Valve: Yes (Tubular type)
- Material: Brass
- Seal Material: Nitrile
- Max. Flow Rate: 707.92 liters per minute
- Max. Working Pressure @ 70°F: 300 psi
- Max. Outside Diameter: 15/16 in
- Overall Length: 2 1/2 in (2.50 in)
- Temperature Range: -40°F to 250°F
