Coupler Body, Steel, Hose Barb, 25 cfm
Mfr # EZ-251-6HB
Zoro # G4874256
Key Features
Specifications
Product Information
- MFR #
- EZ-251-6HB
- Zoro #
- G4874256
- UPC #
- -
- Country of Origin
- Israel
Dimensions
- Hose Fitting Size
- 3/8 in
- Coupling Size
- 1/4 in
- Barb Size
- 3/8 in
- Overall Length
- 3 3/16 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 1 in
- Wire Rope Length
- 3 3/16 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Steel
- Coupling Component
- Socket
- Hose Fitting Gender
- Male
- Connection Type
- Hose Barb
- Finish/Coating
- Trivalent Chrome
- Max. Flow Rate
- 707.92 lpm
- Coupling Locking Type
- Push-to-Connect
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- Pneumatic
- Max. Working Pressure @ 70 F
- 300 psi
- For Hose I.D.
- 3/8 in
- Barbed
- Yes
- Valve Type
- Tubular
Description

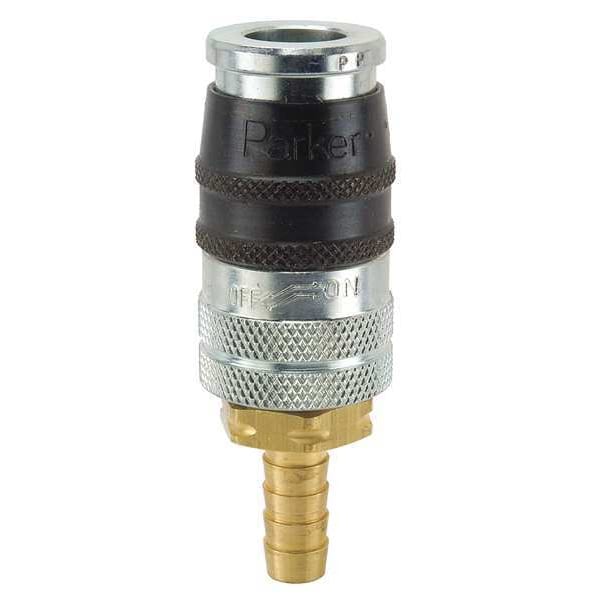

The PARKER - EZ-251-6HB is a quick connect hose coupling designed for pneumatic applications, featuring a push-to-connect locking mechanism for coupling and uncoupling hoses. Constructed from steel with a trivalent chrome finish, this coupling includes a valve component with a tubular valve type intended to regulate air flow. It features a male hose fitting with a hose barb connection style compatible with a 3/8 in hose inner diameter to form a connection when installed with matching components and proper assembly. The coupling is manufactured to be compatible with the stated industrial interchange standard and is rated for a maximum working pressure of 300 psi at 70°F.
Key Features:
- Hose barb connection with a 3/8 in barb size to fit matching hose I.D.
- Coupling size and body size both 1/4 in, suitable for 1/4 inch ports.
- Includes socket coupling component with push-to-connect locking mechanism for quick engagement.
- Steel construction with trivalent chrome finish for surface treatment.
- Integrated valve (tubular type) included to regulate fluid or air flow.
- Has a maximum rated flow rate of 707.92 liters per minute.
- Overall length measures 3.19 in, max outside diameter 1 in.
- Nitrile seal material temperature rating from -40°F to 250°F.
