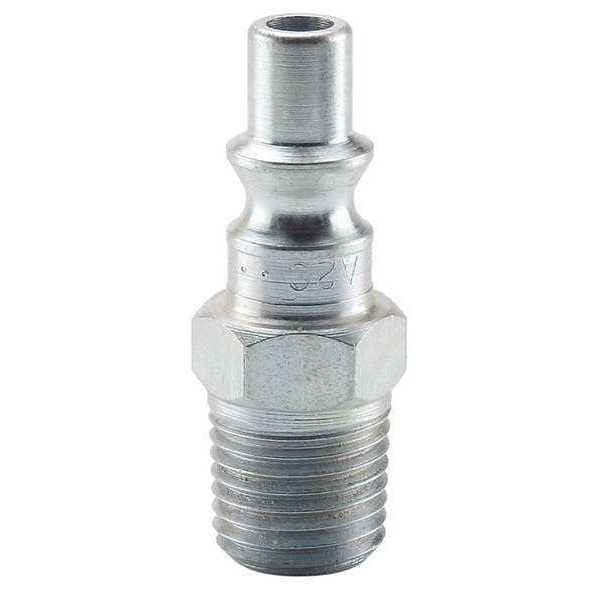

Coupler Plug, Steel, MNPT, 1/4 In. Pipe
Mfr # A2C
Zoro # G4872822
product price:
$
5.19
/ea
Key Features
Interchange Type
ARO
Material
Steel
Coupling Component
Plug
Hose Fitting Gender
Male
Connection Type
Threaded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- A2C
- Zoro #
- G4872822
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Overall Length
- 1 5/8 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 11/16 in
- Wire Rope Length
- 1 5/8 in
- Length
- 1 5/8 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- ARO
- Material
- Steel
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Finish/Coating
- Trivalent Chrome
- Max. Flow Rate
- 707.92 lpm
- Coupling Locking Type
- Sleeve
- Includes Valve
- No
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- Pneumatic
- Max. Working Pressure @ 70 F
- 300 psi
- Barbed
- No
- Connection Thread Type
- NPT
Description
The PARKER - A2C is a quick connect hose coupling designed for pneumatic applications, providing a rapid, tool-free connection between hoses or equipment. It includes a sleeve mechanism intended to lock the coupling during engagement and is constructed from steel with a trivalent chrome finish. This coupling is sized for 1/4 inch nominal diameter hoses and is intended for use with ARO interchange standard connections. is configured for connection and disconnection without the use of tools; an integrated valve component is not included. Maximum working pressure is 300 psi at 70°F. Temperature rating: -40°F to 250°F.
Key Features:
- Material: Steel body with trivalent chrome finish for surface treatment.
- Application: Pneumatic use for air lines.
- Connection Type: NPT thread standard with male hose fitting gender.
- Coupling Size and Hose Fitting Size: 1/4 inch nominal diameter.
- Locking Type: Sleeve mechanism for coupling security.
- Interchange Standard: ARO compatible.
- Maximum Working Pressure: 300 psi at 70°F.
- Maximum Flow Rate: 707.92 liters per minute.
- Overall Length: 1 5/8 inches.
- Maximum Outside Diameter: 11/16 inch.
- Temperature Range: -40°F to 250°F.
- Does not include an integrated valve component.
