Shop PARKER

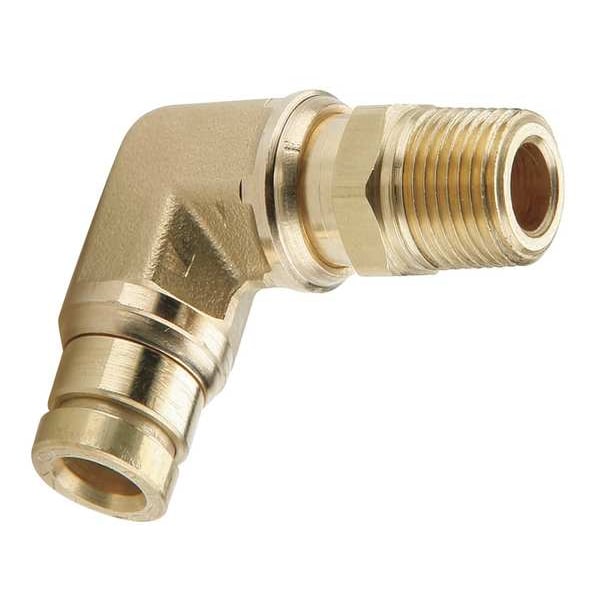

Elbow, Brass, Push-Fit1/4in, MNPT3/8in

  • Mfr # 169PTC-4-6
  • Zoro # G4130497
product price:
$
21.55
/ea

Key Features

Temp. Range
-40 Degrees to 200 Degrees F
Tube Size
1/4 in
Gasket Material
Buna N
Pipe Fitting Connection Type
MNPT x Tube
Length
27/32 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
169PTC-4-6
Zoro #
G4130497
UPC #
-
Country of Origin
United States
Temp. Range
-40 Degrees to 200 Degrees F
Gasket Material
Buna N
Pipe Fitting Connection Type
MNPT x Tube
Basic Pipe Fitting Shape
Elbow
Standards
DOT FMVSS 571.106, SAE J2494, SAE J2494-3
Connection
Tube x MNPT
Basic Pipe Fitting Material
Metal
Pressure (PSI)
250
Material
Brass
Item
Push-Fit Elbow Fitting
Specific Pipe Fitting Shape
90 Degree Elbow
Type
Push to Connect
Fitting Side B Connection Type
MNPT
Fitting Side A Connection Type
Push-to-Connect
Release Ring Material
Buna N
Minimum Operating Temperature
-40 Degrees F
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Compatible Tube Material
Nylon
System of Measurement
Imperial
Resistance Properties
Impact-Resistant
Release Type
Button
Maximum Operating Pressure
250 psi
Maximum Operating Temperature
200 Degrees F
Color
Gold
Specific Fitting Shape
90 Degrees Swivel Elbow Adapter
Application
Air
Fitting Material
Brass
Fitting Shape
90 Degrees Elbow
Operating Temperature - Maximum
230 Degrees F
For Media Type
Air
Series
PTC Brass
Operating Temperature - Minimum
-40 Degrees F
Material Grade
C36000
Fitting Side 1 Connection Type
Push-to-Connect
Fitting Side 2 Connection Type
MNPT
Operating Pressure - Maximum
250 psi
Fitting Features
Swivel
Connector Type
Adapter

Description

Push-Fit Elbow Fitting, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 3/8 in, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Material Brass, Fitting Thread Size Not Applicable, Material Grade C36000, Color Gold, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 27/32 in
