  9. Filter Housing, 2In NPT, 90GPM, Steel

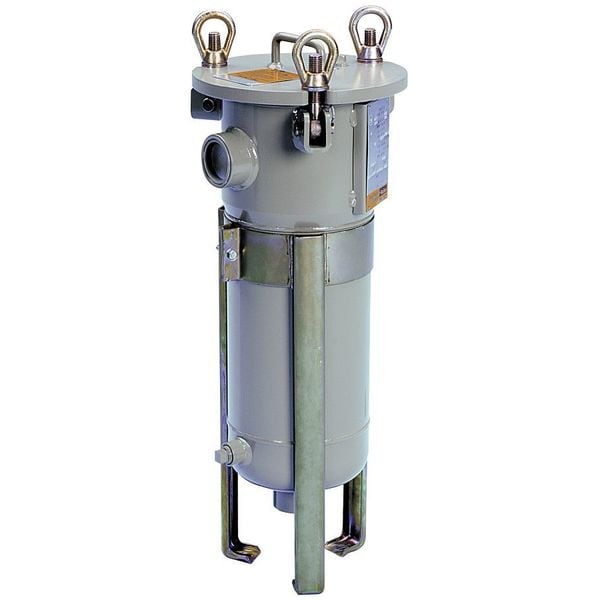

Parker Filter Housing, 2In NPT, 90GPM, Steel FE6-3-2 - main

Filter Housing, 2In NPT, 90GPM, Steel

  • Mfr # FE6-3-2

  • Zoro # G2309548

product price: $4,710.99
/ea
Free Shipping & Returns

Key Features

Flow Rate
90 gpm
Max. Pressure (PSI)
150 psi
Color
Gray
Flow Rate (GPM)
90
Type
Cartridge
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FE6-3-2
Zoro #
G2309548
UPC #
-
Country of Origin
United States

Dimensions

Length (In.)
53 1/8 in
Height (In.)
53 1/8 in
Dia. (In.)
12 1/4 in
Width (In.)
12 1/4 in
Overall Width
12 1/4 in
Overall Height
53 1/8 in
Overall Diameter
12 1/4 in
Overall Length
53 1/8 in
Connection Size
2 in

Details

Item
Filter Housing
Flow Rate
90 gpm
Max. Pressure (PSI)
150 psi
Color
Gray
Flow Rate (GPM)
90
Type
Cartridge
Cartridges Required
6
Inputs/Outputs
2 in NPT
Includes
Buna-N Seal
Housing Material
Carbon Steel
For Use With
2-1/2 in Diameter Filter Cartridges
Max. Temp. (F)
450 Degrees F
Head Material
Carbon Steel
Standards
ASME UM Stamp
Max. Flow GPM
90
Application
Coolant, Cutting Oil, Edible Oil, Coatings, Lubricant, Potable Water, Process Water, Solvent
Maximum Temperature
450 Degrees F
Maximum Pressure
150 psi
Series
FE Multi-Cartridge Filter Vessels
Compatible Mfr. Model Number
4150-5537, 4151-1371, 4151-5371, 4152-8371, 4154-5371
Features
Adjustable Leg Height, ASME Code UM Stamp, Dual Purpose Cartridge Seats for use with DOE and 2-222 O-ring SOE Cartridges, Side Inlet Cover Opens without Disconnecting Piping, Side Inlet, Bottom Outlet, and Crevice-free Welded Design Provide a Smooth Interior for Easy Wash-Out and Cleaning, Single O-Ring Design Closure Assures Quick, Positive Cover Sealing, Swing Bolts with Eyenuts for Fast, Easy Opening and Closing of Cover, Threaded or Flanged Inlet and Outlet, Threaded Vent and Drain Connections
Connection Type
NPT

Description

Water Filter Housing, Housing Material Carbon Steel, Flow Rate 90 gpm, Connection Size 2 in, Overall Height 53 1/8 in, Overall Diameter 12 1/4 in, Connection Type NPT, Overall Length 53 1/8 in, Overall Width 12 1/4 in, Application Coolant Filtration, Cutting Oil, Edible Oil, Lubricant Filtration, Potable Water Filtration, Process Water, Solvent Filtration, Color Gray, Compatible Mfr. Model Number 4150-5537, 4151-1371, 4151-5371, 4152-8371, 4154-5371

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
