  11. Filter/Regulator, 90 cfm, Zinc, 250 psi
Shop All Spray Gun Accessories
Parker

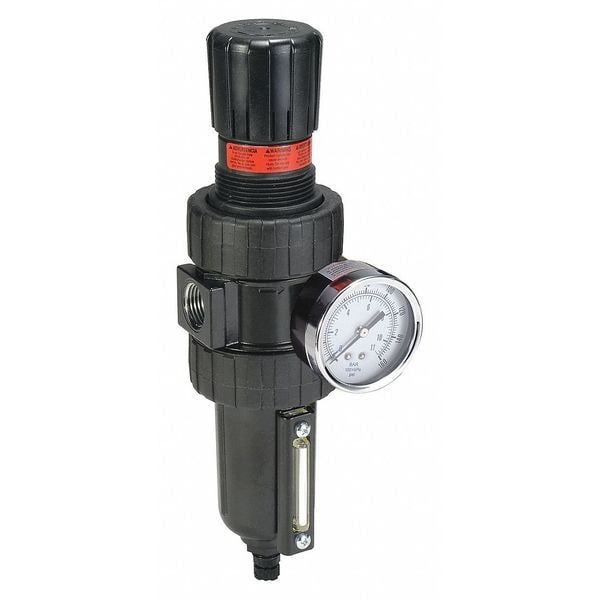

Filter/Regulator, 90 cfm, Zinc, 250 psi

product price: $353.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size Standard
  • Includes Metal Bowl with Sight Gauge
  • Connection Size - Air Treatment 1/2 in NPT
  • Adjustment Knob Non Rising
  • Adjustment Range - Air Treatment 0 to 125 psi
See all product information

Product Information

Dimensions

Size Standard
Connection Size - Air Treatment 1/2 in NPT
Size - Air Treatment Standard
Bowl Size 7.2 oz.
Pipe Size 1/2" NPT
Gauge Port Size 1/4 in
Bowl Size - Air Treatment 7.2 oz
Overall Height 11 3/4 in
Overall Width 3 1/4 in
Air Inlet Size 1/2 in
Pressure Gauge Port Size 1/4 in
Air Outlet Size 1/2 in
Overall Depth 3 1/4 in

Details

Item Filter-Regulator
Includes Metal Bowl with Sight Gauge
Adjustment Knob Non Rising
Adjustment Range - Air Treatment 0 to 125 psi
Bowl Material - Air Treatment Zinc
Drain Type Automatic
Max. Incoming Pressure - Air Treatment 250 psi
Bowl Material Zinc
Filter Rating 5 micron
Max. Flow - Air Treatment 90 cfm
Max. Flow 90 cfm
For Removal Of Particles, Water
Filter Rating - Air Treatment 5 micron
Item - Filter-Regulators Filter-Regulator
Max. Pressure 250 psi
Adjustment Range 0 to 125 psi
Max. Temp. 175 Degrees F
Series 07E
Body Material Zinc
Regulator Type Relieving
Drain Included Yes
Differential Pressure Indicator Included Yes
Number of Air Outlets 1
Maximum Flow Rate 90 cfm
Maximum Operating Temperature 80 Degrees C
System Location Air Line
Minimum Operating Temperature 0 Degrees C
Adjustment Mechanism Material Plastic
Sight Gauge Included Yes
Filter Bowl Material Metal
For Fluid Type Water
Air Outlet Type NPT
Seal Material Nitrile
Drain Part Compatibility PS506P
Air Inlet Type NPT
For Substance Type Particles, Water
Filter Bowl Capacity 7.2 oz
Pressure Gauge Included Yes
Modular Connection Modular Connection
Filter Type Particulate
Number of Air Inlets 1
Weight 2.5 lb
Maximum Operating Pressure 250 psi
Maximum Flow @ 100 psi 90 scfm
Adjustment Mechanism Knob
Pressure Drop 10 psi

Description

Filter-Regulator, Filter Bowl Material Zinc, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 90 cfm, Filter Rating 5 micron, Filter Type Particulate, Maximum Operating Pressure 250 psi, Drain Type Automatic, Pressure Gauge Included Yes, Body Material Zinc, Overall Width 3 1/4 in, Series 07E, Adjustment Mechanism Knob, Adjustment Mechanism Material Plastic, Air Outlet Size 1/2 in, Air Outlet Type NPT, Differential Pressure Indicator Included Yes, Drain Included Yes
