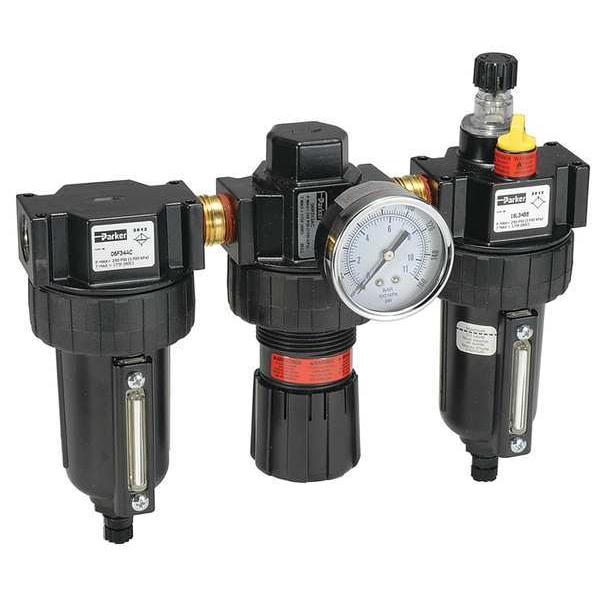

Parker Filter/Regulator Lubricator, 1/2 In. NPT 16A34B18A4BC - main

Filter/Regulator Lubricator, 1/2 In. NPT

  • Mfr # 16A34B18A4BC

  • Zoro # G4862706

product price: $506.99
/ea
Free Shipping & Returns

Key Features

Includes
Fill Plug, Gauge
Pipe Size
1/2" NPT
Max. Pressure
250 psi
Bowl Size
4.4 oz.
Overall Height
7 15/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16A34B18A4BC
Zoro #
G4862706
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/2" NPT
Bowl Size
4.4 oz.
Overall Height
7 15/16 in
Connection Size - Air Treatment
1/2 in NPT
Overall Width
9 7/16 in
Gauge Port Size
1/4 in NPT
Bowl Size - Air Treatment
4.4 oz
Size - Air Treatment
Compact
Air Outlet Size
1/2 in
Pressure Gauge Port Size
1/4 in
Air Inlet Size
1/2 in
Overall Depth
4 9/16 in

Details

Item
Filter/Regulator/Lubricator
Includes
Fill Plug, Gauge
Max. Pressure
250 psi
Number of Pieces
3
Drain Type
Manual
Filter Rating
5 micron
Filter Rating - Air Treatment
5 micron
Bowl Material
Die Cast Zinc
Adjustment Knob
Non Rising
Max. Flow - Air Treatment
90 cfm
Item - FRL
Filter/Regulator/Lubricator
Max. Flow
90 cfm
Bowl Material - Air Treatment
Zinc
Max. Pipe Run - Air Treatment
100 ft
Number of Pieces - Air Treatment
3
Adjustment Range
0 to 125 psi
Max. Incoming Pressure - Air Treatment
250 psi
Adjustment Range - Air Treatment
0 to 125 psi
For Removal Of
Particles, Water
Max. Temp.
175 Degrees F
Drain Included
Yes
Body Material
Zinc
Series
16A
Oil Capacity
4.4 oz
Sight Dome Included
Yes
Maximum Operating Temperature
175 Degrees F
Lubricator Bowl Material
Zinc
For Maximum Pipe Run
100 ft
Regulator Type
Relieving
Lubricator Type
Micro Mist
Adjustment Mechanism
Nonrising
Air Inlet Type
NPT
Lubricator Bowl Capacity
4.4 oz
Seal Material
Nitrile
Number of Air Outlets
1
Pressure Gauge Port Type
NPT
Sight Gauge Included
Yes
Maximum Regulated Pressure
125 psi
Pressure Gauge Included
Yes
Maximum Flow Rate
85 cfm
For Fluid Type
Oil
Filter Type
Particulate
For Substance Type
Air
Filter Bowl Material
Metal
Minimum Regulated Pressure
0 psi
Maximum Operating Pressure
250 psi
Number of Air Inlets
1
Minimum Flow Rate
53 cfm
Air Outlet Type
NPT
Filter Bowl Capacity
4.4 oz
Minimum Operating Temperature
32 Degrees F
Type
3 Piece Modular Combination

Description

Filter/Regulator/Lubricator, Air Inlet Size 1/2 in, Air Inlet Type NPT, Maximum Flow Rate 85 cfm, Maximum Operating Pressure 250 psi, Filter Rating 5 micron, Filter Bowl Material Zinc, Filter Bowl Capacity 4.4 oz, Lubricator Bowl Capacity 4.4 oz, Drain Type Manual, Overall Width 9 7/16 in, Series 16A, Adjustment Mechanism Nonrising, Air Outlet Size 1/2 in, Air Outlet Type NPT, Body Material Zinc, Drain Included Yes, Filter Type Particulate
