Shop PARKER

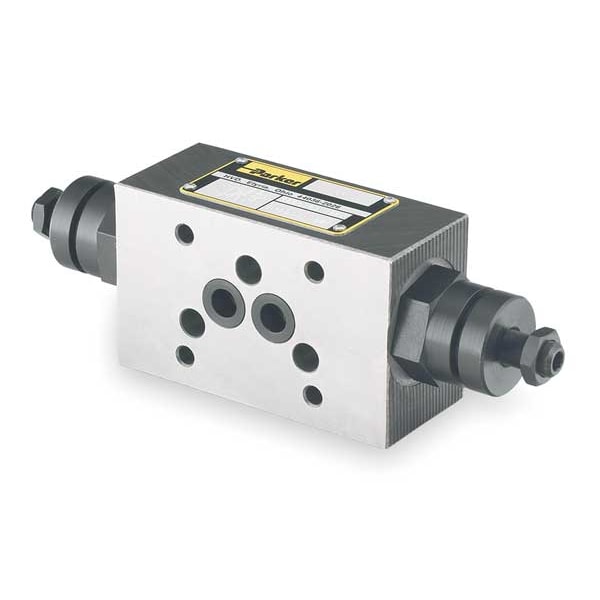

Flow Control Valve, 20.1 gpm

  • Mfr # FM3AAKN
  • Zoro # G2993322
product price:
$
367.99
/ea
Free Shipping & Returns

Key Features

Body Material
Cast Iron
Seal Type
Nitrile O-Ring
Overall Height
1.42 in
Overall Length
9.24 in
Overall Width
2.75 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FM3AAKN
Zoro #
G2993322
UPC #
-
Country of Origin
United States
Item
Flow Control Valve
Body Material
Cast Iron
Seal Type
Nitrile O-Ring
Series
FM
For Use With
D05 Valves
Max. Pressure - Hydraulic Valves
5,000 psi
GPM @ 3000 PSI
30
Valve Type - Hydraulic Valves
Hydraulic Flow Control Valve
Hz
Does Not Apply
Max. Flow - Hydraulic Valves
30 gpm
Operation Type - Hydraulic Valves
A Port
Max. Pressure (PSI)
5000
Standards
ISO 4406
Type
A Port
Seal Material
NBR
Adjustment Method
Knob
Valve Control
Throttle Check
Operating Temperature - Minimum
-4 Degrees F
Flow Rate - Maximum
20.1 gpm
Pressure - Maximum
5,075 psi
Actuation Mechanism
Manual
Includes Seals
Seals Included
Operating Temperature - Maximum
140 Degrees F

Dimensions

Overall Height
1.42 in
Overall Length
9.24 in
Overall Width
2.75 in
Height (In.)
1.42 in
Width (In.)
2.75 in
Size
NFPA D05
NFPA Size
D05
Length (In.)
9.24 in
Wire Rope Length
9.24 in
Length
9.24 in

Description

Flow Control Valve, Flow Rate - Maximum 20.1 gpm, NFPA Size D05, Number of Positions -, Pressure - Maximum 5,075 psi, Valve Control Throttle Check, Series FM, Actuation Mechanism Manual, Overall Height 1.42 in, Standards ISO 4406, Overall Length 9.24 in, Overall Width 2.75 in, Seal Material NBR, Operating Temperature - Maximum 140 Degrees F
