Shop PARKER

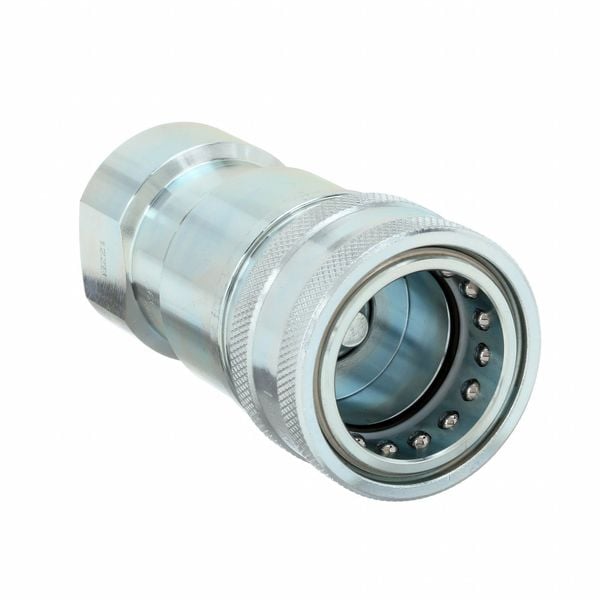

Hydraulic Quick Connect Hose Coupling, Steel Body, Sleeve Lock, 1"-11-1/2 Thread Size, 6600 Series

  • Mfr # 6601-16-16

  • Zoro # G4671073

product price:  $113.99
/ea
Free Shipping & Returns

Key Features

Body Material
Steel
Seal Material
Buna-N
Coupling Locking Type
Sleeve
Max. Pressure
4000 psi
Thread Size
1"-11 1/2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6601-16-16
Zoro #
G4671073
UPC #
-
Country of Origin
Korea, Republic of

Dimensions

Thread Size
1"-11 1/2
Length
4-1/8"
Coupler Thread Size
1"-11-1/2
Coupler Body Size
1"
Overall Length
4 1/8 in
Coupling Size
1 in
Max. Outside Dia.
2 1/8 in
Wire Rope Length
4 1/8 in

Details

Item
Hydraulic Quick Connect Hose Coupling
Body Material
Steel
Seal Material
Buna-N
Coupling Locking Type
Sleeve
Max. Pressure
4000 psi
Connection Type
Threaded
Shut Off
double
For Use With
ISO 7241-1 Series A Nipple
Sleeve Material
Steel
Includes
Sleeve Lock
Series
6600
Parker Interchange
6601-16-16
Standards
ISO 7241-1 Series A
Coupler Flow Rate
50.0 gpm
Bearing Material
Stainless Steel
Locking Mechanism
Ball
Coupler Body Material
Steel
Operating Temp. Range
-40 Degrees to 250 Degrees F
Coupler Finish
Zinc Plated
Coupler Interchange Type
ISO 7241-1 Series A
Valve Design
Poppet
Quick Coupler Type
Hydraulic Coupler Body
Coupler Connection Type
FNPT
Hansen Interchange
HA-15251-00
Finish/Coating
Plain
Snap-Tite Interchange
61C16-16F
Includes Shut Off
Yes
Max. Working Pressure @ 70 F
4,000 psi
Includes Bearing
Yes
Valve Type
Poppet
Hose Fitting Gender
Female
Safeway Interchange
S565-8
Coupling Component
Socket
Max. Flow Rate
189.27 lpm
Fitting Type
Female NPTF
Includes Valve
Yes

Description

Hydraulic Quick Connect Hose Coupling, Socket, 6600 Series, Steel, Coupling Size 1 in, Female, Max. Working Pressure @ 70 F 4,000 psi, Max. Flow Rate 189.27 lpm
