Shop PARKER

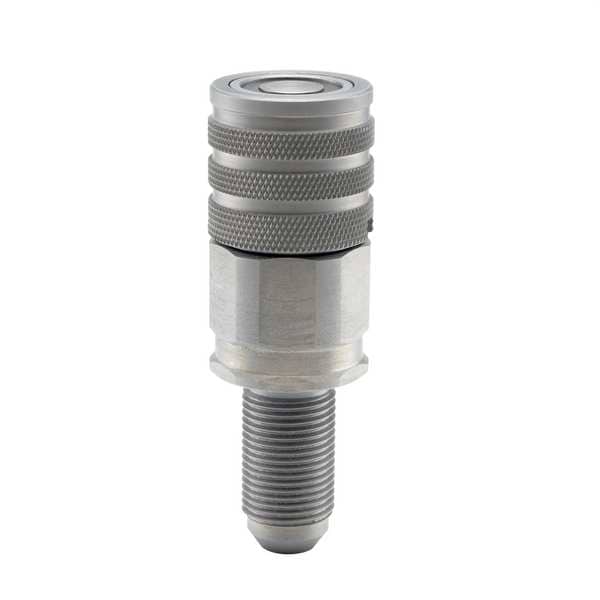

Hydraulic Quick Coupler, Steel Body, Ball Lock, Hydraulic Quick Coupler, Thread 7/8"-14 Thread Size

  • Mfr # FEM-501-10BMF

  • Zoro # G803497837

product price:  $84.59
/ea

Key Features

Body Material
Steel
Seal Material
Buna-N
Coupling Locking Type
Ball
Thread Size
7/8"-14
Connection Type
Threaded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FEM-501-10BMF
Zoro #
G803497837
UPC #
-
Country of Origin
United States

Dimensions

Thread Size
7/8"-14
Overall Length
2 7/16 in
Coupling Size
1/2 in

Details

Item
Hydraulic Quick Connect Hose Coupling
Body Material
Steel
Seal Material
Buna-N
Coupling Locking Type
Ball
Connection Type
Threaded
For Use With
FEC Series Nipples, FEM Series Nipples, ISO 16028 Complying Couplings
Sleeve Material
Steel
Temp. Range
-40 Degrees to 250 Degrees F
Finish/Coating
Zinc Nickel Plated
Max. Flow Rate
68.14 lpm
Valve Type
Flat Face
Standards
ISO 16028
Max. Working Pressure @ 70 F
5,000 psi
Coupling Component
Socket
Parker Interchange
FEM/FEC Series Nipples
Includes Shut Off
Yes
Hose Fitting Gender
Male
Fitting Type
Male Bulkhead UNF
Includes Valve
Yes
Operating Temperature - Maximum
250 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Compatible Series
FEC, FEM

Description

Hydraulic Quick Connect Hose Coupling, Socket, Steel, Coupling Size 1/2 in, Male, Max. Working Pressure @ 70 F 5,000 psi, Max. Flow Rate 68.14 lpm

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
