Shop PARKER

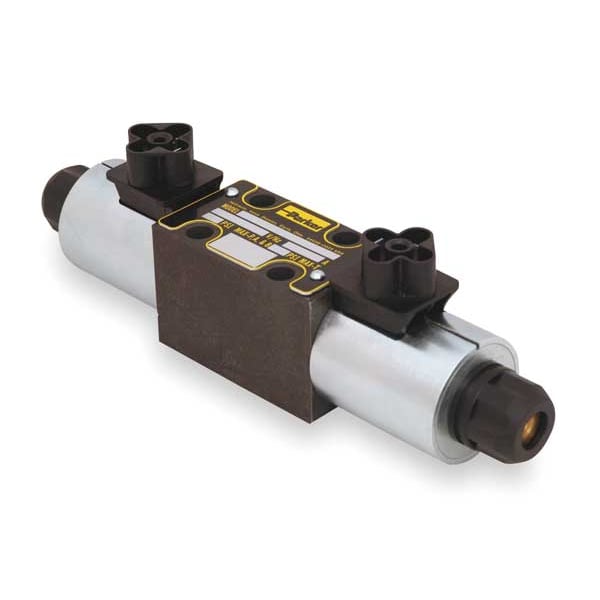

Hydraulic Valve, Four-Way, 24V DC

  • Mfr # D1VW002CNJW

  • Zoro # G3318095

product price:
$
313.99
/ea
Free Shipping & Returns

Key Features

Seal Type
Nitrile O-Ring
Overall Height
1.97 in
Overall Length
9.2 in
Overall Width
1.81 in
Series
D1VW
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
D1VW002CNJW
Zoro #
G3318095
UPC #
-
Country of Origin
United States
Item
Hydraulic Directional Valve
Seal Type
Nitrile O-Ring
Series
D1VW
Center Position - Hydraulic Valves
Open
Valve Type - Hydraulic Valves
Hydraulic Directional Control Valve
Coil Volts
24 DC
Number of Positions
Three Positions
Valve Ways and Positions
4-Way/3-Position
Max. Pressure - Hydraulic Valves
5,000 psi
Type
Solenoid Operated
Spool Type
Open
Operation Type - Hydraulic Valves
Solenoid Operated
Coil Voltage - Hydraulic Valves
24V DC
GPM @ 3000 PSI
20
Standards
ISO-4401, NFPA D03
Max. Tank Pressure (PSI)
3,000
Number of Ways
Four-Way
Return Type - Hydraulic Valves
Spring Centered
Max. Flow - Hydraulic Valves
20 gpm
Max. Pressure (PSI)
5000
Operating Temperature - Minimum
-4 Degrees F
Flow Rate - Maximum
20 gpm
Pressure - Maximum
5,000 psi
Voltage
24V DC
Seal Material
NBR
Electrical Connection Type
DIN without Plug
Operating Temperature - Maximum
140 Degrees F
Center Position
Open Center
Valve Control
Directional Control
Return Mechanism
Solenoid
Tank Pressure - Maximum
3,000 psi
Includes Seals
Seals Included

Description

Hydraulic Directional Valve, Flow Rate - Maximum 20 gpm, NFPA Size D03, Number of Positions Three Positions, Pressure - Maximum 5,000 psi, Valve Control Directional Control, Number of Ways Four-Way, Voltage 24V DC, Center Position Open Center, Series D1VW, Overall Height 1.97 in, Standards ISO-4401, NFPA D03, Electrical Connection Type DIN without Plug, Overall Length 9.2 in, Overall Width 1.81 in, Return Mechanism Solenoid, Seal Material NBR, Tank Pressure - Maximum 3,000 psi
