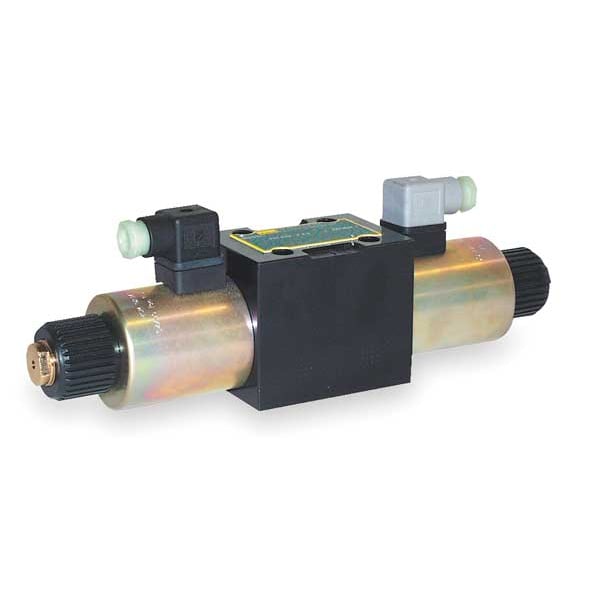

Hydraulic Valve, Three-Way, 24V DC

  • Mfr # D3W004CNJW

  • Zoro # G3436641

product price:  $653.99
/ea
Free Shipping & Returns

Key Features

Valve Type
Ball
Body Material
Cast Iron
Seal Type
Nitrile O-Ring
Overall Height
3.54 in
Overall Length
11.81 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D3W004CNJW
Zoro #
G3436641
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
3.54 in
Overall Length
11.81 in
Overall Width
2.76 in
Width (In.)
2.76 in
Length (In.)
11.81 in
Height (In.)
3.54 in
Size
NFPA D05
NFPA Size
D05
Wire Rope Length
11.81 in

Details

Item
Hydraulic Directional Valve
Valve Type
Ball
Body Material
Cast Iron
Seal Type
Nitrile O-Ring
Series
D3W
Max. Flow - Hydraulic Valves
40 gpm
Valve Ways and Positions
4-Way/3-Position
Coil Voltage - Hydraulic Valves
24V DC
Max. Tank Pressure (PSI)
3,000
Standards
ISO 4401, NFPA D05
Number of Ways
Three-Way
Holding Amps
1.50
Max. Pressure - Hydraulic Valves
5,000 psi
Override
Manual
Spool Type
Float
Coil Volts
24
Valve Type - Hydraulic Valves
Hydraulic Directional Control Valve
Operation Type - Hydraulic Valves
Solenoid Operated
Return Type - Hydraulic Valves
Spring Centered
GPM @ 3000 PSI
40
Max. Pressure (PSI)
5000
Center Position - Hydraulic Valves
Float
Type
Solenoid Operated
Number of Positions
Three Positions
Operating Temperature - Minimum
-13 Degrees F
Voltage
24V DC
Return Mechanism
Spring
Includes Seals
Seals Included
Pressure - Maximum
5,075 psi
Center Position
Float Center
Valve Control
Directional Control
Tank Pressure - Maximum
3,000 psi
Flow Rate - Maximum
34.3 gpm
Port Connections
Manifold
Seal Material
Nitrile
Electrical Connection Type
DIN without Plug
Actuation Mechanism
Manual
Mounting
Subplate-Mounted
Operating Temperature - Maximum
140 Degrees F
Holding Current
1.5 A

Description

Hydraulic Directional Valve, Flow Rate - Maximum 34.3 gpm, NFPA Size D05, Number of Positions Three Positions, Pressure - Maximum 5,075 psi, Valve Control Directional Control, Number of Ways Three-Way, Voltage 24V DC, Port Connections Manifold, Valve Type Ball, Center Position Float Center, Series D3W, Actuation Mechanism Manual, Holding Current 1.5 A, Overall Height 3.54 in, Standards ISO 4401, NFPA D05, Electrical Connection Type DIN without Plug, Overall Length 11.81 in, Overall Width 2.76 in
