Shop PARKER

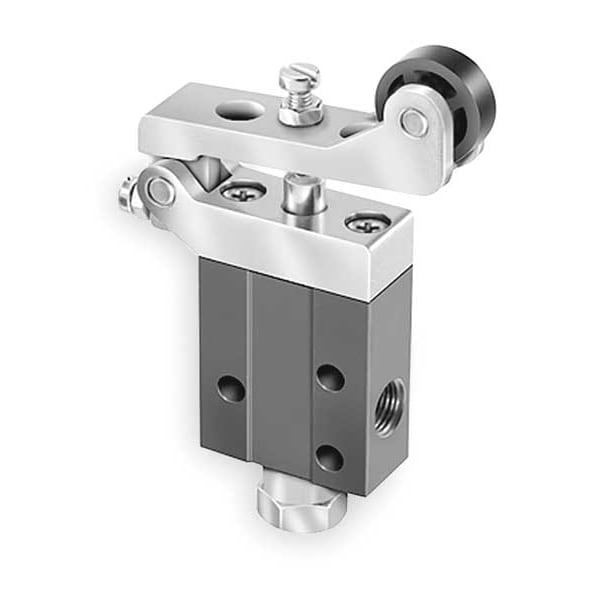

Manual Air Control Valve, 3-Way, 1/8In NPT

  • Mfr # 404211000
  • Zoro # G1293171
product price:
$
106.99
/ea
Free Shipping & Returns

Key Features

Actuator/Return
Roller/Spring
Center Position
Closed
Coefficient of Volume
0.2
Series
DirectAir 2
Number of Ways
Three-Way
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
404211000
Zoro #
G1293171
UPC #
999571037761
Country of Origin
United States
Item
Manual Air Control Valve
Actuator/Return
Roller/Spring
Center Position
Closed
Coefficient of Volume
0.2
Series
DirectAir 2
Number of Ways
Three-Way
Number of Positions
Two-Position
Connection
NPT
Valve Temp. Range
32 Degrees to 175 Degrees F
Body Material
Aluminum
Valve Ways and Positions
3-Way/2-Position
Max. Pressure
150 psi
Temp. Range
32 Degrees to 175 Degrees F
Max. CFM - Valves
0.17 cfm
Valve Actuator / Return
Roller / Spring
Valve Max. Pressure Rating
150 psi
Air Valve Type
3-Way, 2-Position
Seal Material
Fluorocarbon/Nitrile
Application
Assembly Lines, Conveyance, Industrial, Packaging
Valve Type
Poppet
Standards
CE Certified, RoHS Compliant
Vacuum Rating
Vacuum Operable
Exhaust Port Connection Type
Threaded
Operating Pressure - Maximum
150 psi
Operating Pressure - Minimum
0 psi
Spacer Material
Aluminum
Number of Ports
3
Actuator Type
Roller
Spool Material
Stainless Steel
Coefficient of Volume (Cv)
0.2
Flow Rate - Maximum
0.17 scfm
Bushing Material
Brass
Product Type
Manual Air Control Valve
Operating Temperature - Minimum
32 Degrees F
Return Action
Spring Return
Body Style
Inline
Lubrication
Lubrication Not Required
Valve Port Connection Gender
Female
Actuator Color
Black
Operating Temperature - Maximum
175 Degrees F
Valve Port Connection Type
NPT
For Media
Air
Valve Action
Normally Closed
Exhaust Port Connection Gender
Female
Poppet Material
Nylon

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return Roller / Spring, Max. CFM - Valves 0.17 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 175 Degrees F, Center Position Closed, Coefficient of Volume 0.2, Body Material Aluminum, Overall Length 4 3/16 in, Overall Height 2 1/4 in, Overall Width 5/8 in, Series DirectAir 2, Manual Air Control Valve
