Shop PARKER

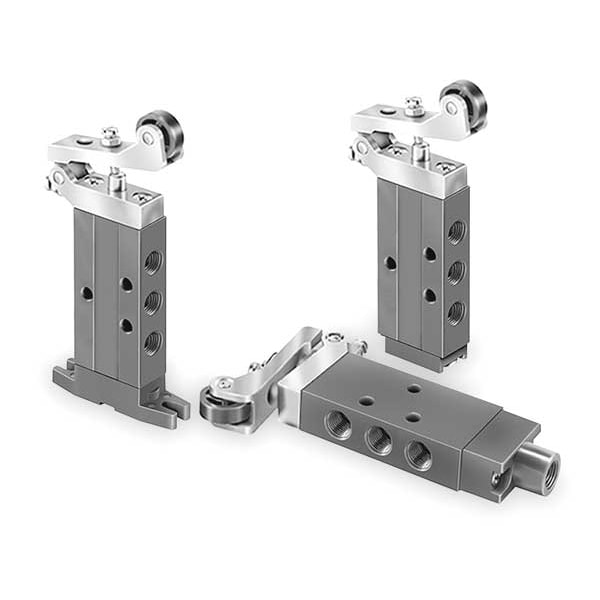

Manual Air Control Valve, 3-Way, 1/8In NPT

  • Mfr # 414211000

  • Zoro # G2504372

product price:  $153.99
/ea
Free Shipping & Returns

Key Features

Actuator/Return
Roller/Spring
Center Position
Closed
Coefficient of Volume
0.2
Series
DirectAir 2
Number of Ways
Three-Way
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
414211000
Zoro #
G2504372
UPC #
993276711643
Country of Origin
United States

Dimensions

Overall Height
2 1/4 in
Overall Length
5 in
Overall Width
5/8 in
Pipe Size
1/8"
Valve Port Size
1/8 in
Valve Port Connection Size
1/8 in
Exhaust Port Connection Size
1/8 in

Details

Item
Manual Air Control Valve
Actuator/Return
Roller/Spring
Center Position
Closed
Coefficient of Volume
0.2
Series
DirectAir 2
Number of Ways
Three-Way
Number of Positions
Two-Position
Air Valve Type
3-Way, 2-Position
Temp. Range
32 Degrees to 175 Degrees F
Max. Pressure
150 psi
Connection
NPT
Valve Actuator / Return
Roller / Spring
Body Material
Aluminum
Valve Ways and Positions
3-Way/2-Position
Valve Temp. Range
32 Degrees to 175 Degrees F
Max. CFM - Valves
0.2 cfm
Valve Max. Pressure Rating
150 psi
Application
Assembly Lines, Conveyance, Industrial, Packaging
Seal Material
Fluorocarbon/Nitrile
Operating Pressure - Maximum
150 psi
Product Type
Manual Air Control Valve
Vacuum Rating
Vacuum Operable
Operating Temperature - Maximum
175 Degrees F
For Media
Air
Operating Temperature - Minimum
32 Degrees F
Valve Port Connection Gender
Female
Body Style
Inline
Valve Action
Normally Closed
Bushing Material
Brass
Valve Port Connection Type
NPT
Valve Type
Spool
Flow Rate - Maximum
0.2 scfm
Actuator Color
Black
Actuator Type
Roller
Return Action
Spring Return
Standards
CE Certified, RoHS Compliant
Exhaust Port Connection Type
Threaded
Number of Ports
3
Coefficient of Volume (Cv)
0.2
Lubrication
Lubrication Not Required
Operating Pressure - Minimum
0 psi
Exhaust Port Connection Gender
Female
Poppet Material
Nylon
Spacer Material
Aluminum

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return Roller / Spring, Max. CFM - Valves 0.2 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 175 Degrees F, Center Position Closed, Coefficient of Volume 0.2, Body Material Aluminum, Overall Length 5 in, Overall Height 2 1/4 in, Overall Width 5/8 in, Series DirectAir 2, Manual Air Control Valve
