Shop PARKER

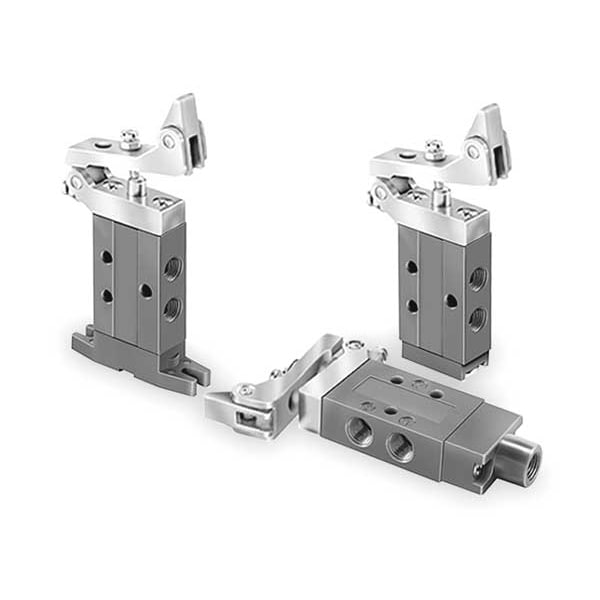

Manual Air Control Valve, 3-Way, 1/8In NPT

  • Mfr # 414311000

  • Zoro # G1065951

product price:
$
139.99
/ea
Free Shipping & Returns

Key Features

Actuator/Return
1-Way Tripper/Spring
Center Position
Closed
Coefficient of Volume
0.2
Series
DirectAir 2
Number of Ways
Three-Way
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
414311000
Zoro #
G1065951
UPC #
094704943428
Country of Origin
United States
Item
Manual Air Control Valve
Actuator/Return
1-Way Tripper/Spring
Center Position
Closed
Coefficient of Volume
0.2
Series
DirectAir 2
Number of Ways
Three-Way
Number of Positions
Two-Position
Body Material
Aluminum
Valve Ways and Positions
3-Way/2-Position
Max. Pressure
150 psi
Valve Temp. Range
32 Degrees to 175 Degrees F
Valve Actuator / Return
1-Way Tripper / Spring
Max. CFM - Valves
0.2 cfm
Connection
NPT
Valve Max. Pressure Rating
150 psi
Air Valve Type
3-Way, 2-Position
Temp. Range
32 Degrees to 175 Degrees F
Seal Material
Fluorocarbon/Nitrile
Application
Assembly Lines, Conveyance, Industrial, Packaging
Product Type
Manual Air Control Valve
For Media
Air
Spacer Material
Aluminum
Vacuum Rating
Vacuum Operable
Valve Port Connection Type
NPT
Operating Temperature - Maximum
175 Degrees F
Body Style
Inline
Standards
CE Certified, RoHS Compliant
Valve Type
Spool
Coefficient of Volume (Cv)
0.2
Bushing Material
Brass
Return Action
Spring Return
Actuator Type
One-Way Tripper
Operating Pressure - Maximum
150 psi
Flow Rate - Maximum
0.2 scfm
Poppet Material
Nylon
Operating Pressure - Minimum
0 psi
Operating Temperature - Minimum
32 Degrees F
Lubrication
Lubrication Not Required

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return 1-Way Tripper / Spring, Max. CFM - Valves 0.2 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 175 Degrees F, Center Position Closed, Coefficient of Volume 0.2, Body Material Aluminum, Overall Length 5 1/4 in, Overall Height 2 3/16 in, Overall Width 5/8 in, Series DirectAir 2, Manual Air Control Valve
