Shop PARKER

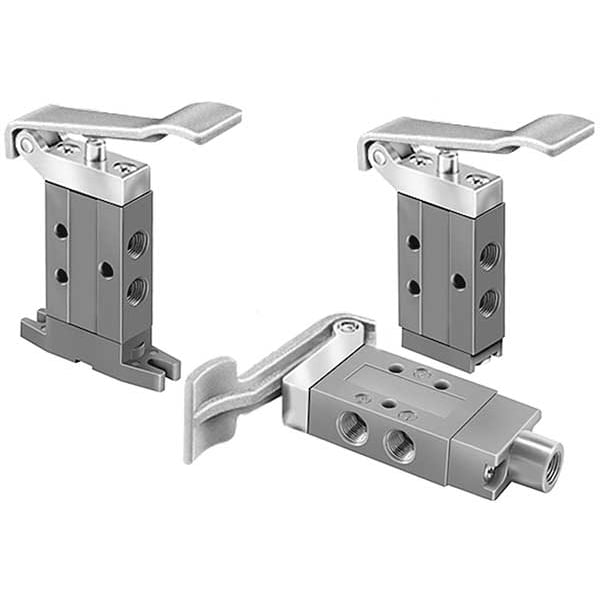

Manual Air Control Valve, 3-Way, 1/8In NPT

  • Mfr # 414711000

  • Zoro # G0762291

product price:  $158.99
/ea
Free Shipping & Returns

Key Features

Actuator/Return
Lever/Spring
Center Position
Closed
Coefficient of Volume
0.2
Series
DirectAir 2
Number of Ways
Three-Way
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
414711000
Zoro #
G0762291
UPC #
094705211816
Country of Origin
United States

Dimensions

Overall Height
3 3/8 in
Overall Length
4 5/16 in
Overall Width
5/8 in
Pipe Size
1/8"
Valve Port Size
1/8 in
Valve Port Connection Size
1/8 in
Exhaust Port Connection Size
1/8 in

Details

Item
Manual Air Control Valve
Actuator/Return
Lever/Spring
Center Position
Closed
Coefficient of Volume
0.2
Series
DirectAir 2
Number of Ways
Three-Way
Number of Positions
Two-Position
Connection
NPT
Valve Actuator / Return
Lever / Spring
Max. CFM - Valves
0.2 cfm
Air Valve Type
3-Way, 2-Position
Valve Max. Pressure Rating
150 psi
Body Material
Aluminum
Temp. Range
32 Degrees to 175 Degrees F
Max. Pressure
150 psi
Valve Temp. Range
32 Degrees to 175 Degrees F
Valve Ways and Positions
3-Way/2-Position
Seal Material
Fluorocarbon/Nitrile
Application
Assembly Lines, Conveyance, Industrial, Packaging
Spacer Material
Aluminum
Exhaust Port Connection Gender
Female
Valve Port Connection Type
NPT
Standards
CE Certified, RoHS Compliant
Valve Port Connection Gender
Female
Valve Type
Spool
Coefficient of Volume (Cv)
0.2
Flow Rate - Maximum
0.2 scfm
Actuator Type
Lever
Actuator Color
Black
Operating Pressure - Minimum
0 psi
Valve Action
Normally Closed
Bushing Material
Brass
Operating Temperature - Maximum
175 Degrees F
Poppet Material
Nylon
Lubrication
Lubrication Not Required
Number of Ports
3
Product Type
Manual Air Control Valve
For Media
Air
Body Style
Inline
Operating Temperature - Minimum
32 Degrees F
Exhaust Port Connection Type
Threaded
Return Action
Spring Return
Operating Pressure - Maximum
150 psi
Vacuum Rating
Vacuum Operable

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return Lever / Spring, Max. CFM - Valves 0.2 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 175 Degrees F, Center Position Closed, Coefficient of Volume 0.2, Body Material Aluminum, Overall Length 4 5/16 in, Overall Height 3 3/8 in, Overall Width 5/8 in, Series DirectAir 2, Manual Air Control Valve
