  11. Manual Air Control Valve, 4-Way, 1/4In NPT

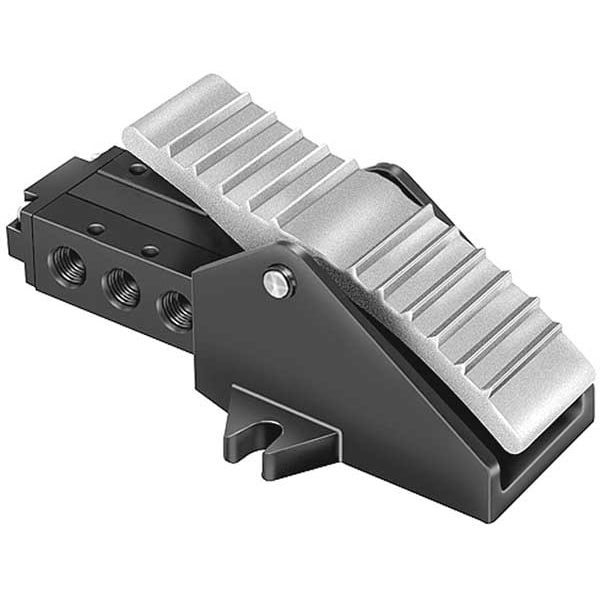

Parker Manual Air Control Valve, 4-Way, 1/4In NPT 520931000 - main

Manual Air Control Valve, 4-Way, 1/4In NPT

  • Mfr # 520931000

  • Zoro # G1407122

product price: $272.99
/ea
Free Shipping & Returns

Key Features

Actuator/Return
Treadle/Manual
Coefficient of Volume
0.8
Series
DirectAir 4
Number of Ways
Four-Way
Number of Positions
Two-Position
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
520931000
Zoro #
G1407122
UPC #
094705179888
Country of Origin
United States

Dimensions

Overall Height
2 3/8 in
Overall Length
7 7/16 in
Overall Width
3 1/2 in
Pipe Size
1/4"
Valve Port Size
1/4 in
Valve Port Connection Size
1/4 in
Exhaust Port Connection Size
1/4 in

Details

Item
Manual Air Control Valve
Actuator/Return
Treadle/Manual
Coefficient of Volume
0.8
Series
DirectAir 4
Number of Ways
Four-Way
Number of Positions
Two-Position
Valve Actuator / Return
Treadle / Manual
Connection
NPT
Max. CFM - Valves
0.83 cfm
Temp. Range
32 Degrees to 175 Degrees F
Max. Pressure
150 psi
Air Valve Type
4-Way, 2-Position
Valve Max. Pressure Rating
150 psi
Valve Ways and Positions
4-Way/2-Position
Body Material
Aluminum
Valve Temp. Range
32 Degrees to 175 Degrees F
Application
Assembly Lines, Conveyance, Industrial, Packaging
Seal Material
Buna-N
Exhaust Port Connection Gender
Female
Coefficient of Volume (Cv)
0.83
Poppet Material
Nylon
Lubrication
Lubrication Not Required
Body Style
Inline
Bushing Material
Brass
Flow Rate - Maximum
0.83 scfm
Operating Temperature - Maximum
175 Degrees F
Product Type
Manual Air Control Valve
Operating Pressure - Minimum
0 psi
Spacer Material
Zinc
Valve Port Connection Type
NPT
Actuator Color
Black
Operating Temperature - Minimum
32 Degrees F
For Media
Air
Valve Type
Spool
Standards
CE Certified, RoHS Compliant
Return Action
Manual Return
Vacuum Rating
Vacuum Operable
Exhaust Port Connection Type
Threaded
Valve Port Connection Gender
Female
Operating Pressure - Maximum
150 psi
Number of Ports
5
Actuator Type
Foot Pedal

Description

Manual Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Valve Port Size 1/4 in, Connection NPT, Valve Actuator / Return Treadle / Manual, Max. CFM - Valves 0.83 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 175 Degrees F, Center Position Not Applicable, Coefficient of Volume 0.8, Body Material Aluminum, Overall Length 7 7/16 in, Overall Height 2 3/8 in, Overall Width 3 1/2 in, Series DirectAir 4, Manual Air Control Valve
