Shop PARKER

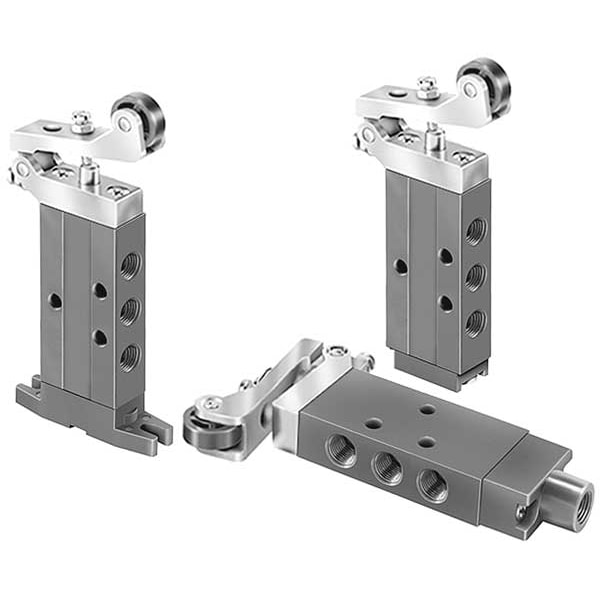

Manual Air Control Valve, 4-Way, 1/8In NPT

  • Mfr # 410211000

  • Zoro # G1076546

product price:
$
184.99
/ea
Free Shipping & Returns

Key Features

Actuator/Return
Roller/Spring
Coefficient of Volume
0.2
Series
DirectAir 2
Number of Ways
Four-Way
Number of Positions
Two-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
410211000
Zoro #
G1076546
UPC #
094705469262
Country of Origin
United States
Item
Manual Air Control Valve
Actuator/Return
Roller/Spring
Coefficient of Volume
0.2
Series
DirectAir 2
Number of Ways
Four-Way
Number of Positions
Two-Position
Max. Pressure
150 psi
Valve Max. Pressure Rating
150 psi
Valve Temp. Range
32 Degrees to 175 Degrees F
Body Material
Aluminum
Connection
NPT
Max. CFM - Valves
0.2 cfm
Valve Ways and Positions
4-Way/2-Position
Air Valve Type
4-Way, 2-Position
Temp. Range
32 Degrees to 175 Degrees F
Valve Actuator / Return
Roller / Spring
Seal Material
Fluorocarbon/Nitrile
Application
Assembly Lines, Conveyance, Industrial, Packaging
Lubrication
Lubrication Not Required
Product Type
Manual Air Control Valve
Poppet Material
Nylon
For Media
Air
Operating Pressure - Maximum
150 psi
Return Action
Spring Return
Exhaust Port Connection Type
Threaded
Operating Pressure - Minimum
0 psi
Actuator Type
Roller
Operating Temperature - Minimum
32 Degrees F
Standards
CE Certified, RoHS Compliant
Number of Ports
5
Exhaust Port Connection Gender
Female
Actuator Color
Black
Body Style
Inline
Flow Rate - Maximum
0.2 scfm
Valve Port Connection Type
NPT
Operating Temperature - Maximum
175 Degrees F
Spacer Material
Aluminum
Coefficient of Volume (Cv)
0.2
Valve Type
Spool
Bushing Material
Brass
Vacuum Rating
Vacuum Operable
Valve Port Connection Gender
Female

Description

Manual Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Valve Port Size 1/8 in, Connection NPT, Valve Actuator / Return Roller / Spring, Max. CFM - Valves 0.2 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 32 Degrees to 175 Degrees F, Center Position Not Applicable, Coefficient of Volume 0.2, Body Material Aluminum, Overall Length 5 9/16 in, Overall Height 2 1/4 in, Overall Width 5/8 in, Series DirectAir 2, Manual Air Control Valve
