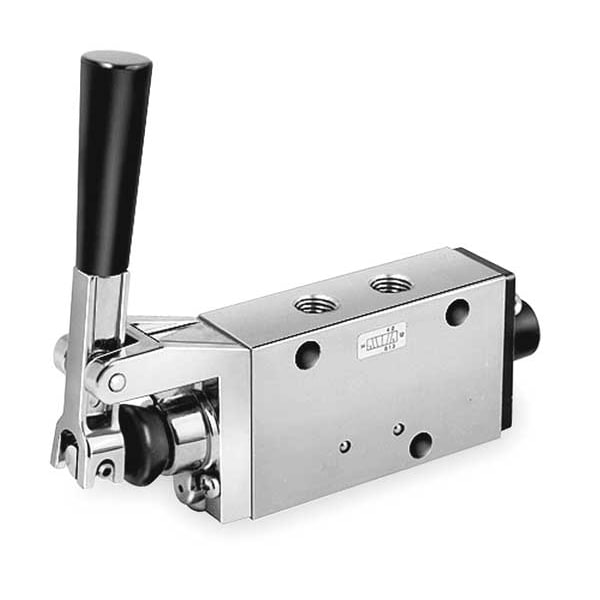

Manual Air Control Valve, 4-Way, 3/8In NPT

  • Mfr # 422CS024W

  • Zoro # G2008885

product price:  $470.99
/ea
Free Shipping & Returns

Key Features

Actuator/Return
Lever/Detent
Center Position
Exhaust
Coefficient of Volume
1.3
Series
42
Number of Ways
Four-Way
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
422CS024W
Zoro #
G2008885
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
5 9/16 in
Overall Length
7 9/16 in
Overall Width
2 1/8 in
Valve Port Size
3/8 in
Pipe Size
3/8"
Valve Port Connection Size
3/8 in

Details

Item
Manual Air Control Valve
Actuator/Return
Lever/Detent
Center Position
Exhaust
Coefficient of Volume
1.3
Series
42
Number of Ways
Four-Way
Number of Positions
Three-Position
Body Material
Aluminum
Air Valve Type
4-Way, 3-Position
Valve Max. Pressure Rating
150 psi
Temp. Range
0 Degrees to 140 Degrees F
Valve Temp. Range
0 Degrees to 140 Degrees F
Max. Pressure
150 psi
Connection
NPT
Valve Ways and Positions
4-Way/3-Position
Valve Actuator / Return
Lever / Detent
Max. CFM - Valves
1.3 cfm
Operating Pressure - Minimum
0 psi
Actuator Color
Black
Coefficient of Volume (Cv)
1.3
Flow Rate - Maximum
1.3 scfm
For Media
Air
Number of Ports
5
Return Action
Detent
Operating Temperature - Maximum
140 Degrees F
Exhaust Port Connection Type
Threaded
Standards
CE Certified
Valve Port Connection Type
NPT
Operating Pressure - Maximum
150 psi
Operating Temperature - Minimum
0 Degrees F
Actuator Type
Lever
Product Type
Manual Air Control Valve
Valve Port Connection Gender
Female
Exhaust Port Connection Gender
Female
Body Style
Inline
Valve Type
Spool

Description

Manual Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Valve Port Size 3/8 in, Connection NPT, Valve Actuator / Return Lever / Detent, Max. CFM - Valves 1.3 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range 0 Degrees to 140 Degrees F, Center Position Exhaust, Coefficient of Volume 1.3, Body Material Aluminum, Overall Length 7 9/16 in, Overall Height 5 9/16 in, Overall Width 2 1/8 in, Series 42, Manual Air Control Valve
