Parker

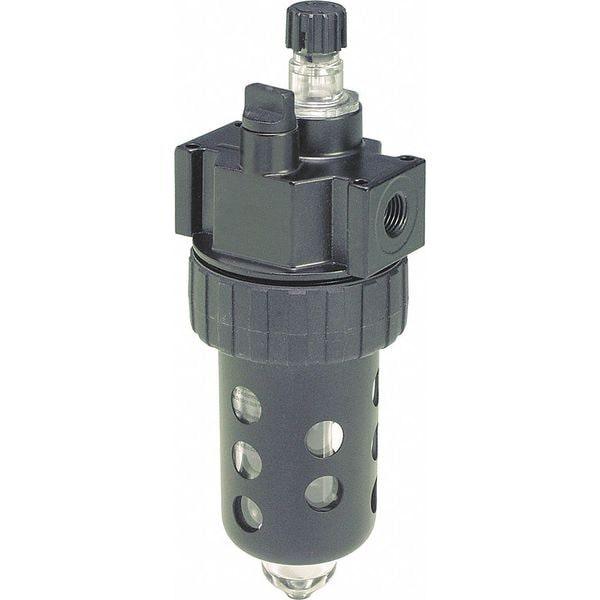

Mist Lubricator, Pipe Size 1/4" NPT

original price: $124.76
11% off
new price: $110.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 06L
  • Bowl Material Plastic
  • Pipe Size 1/4 in NPT
  • Max. Flow 40 cfm
  • Max. Pressure 150 psi
See all product information

Product Information

Dimensions

Pipe Size 1/4 in NPT
Overall Height 7 13/16 in
Overall Width 2 3/4 in
Overall Length 2.81 in
Bowl Size 3 oz
Air Inlet Size 1/4 in
Overall Depth 2 3/4 in
Air Outlet Size 1/4 in

Details

Item Compressed Air Lubricator
Series 06L
Bowl Material Plastic
Max. Flow 40 cfm
Max. Pressure 150 psi
Dome Material Polycarbonate
Max. Pipe Run 20 ft
Drain Included No
Oil Feed Type Mist
Body Material Zinc
Max. Temp. 125 Degrees F
Oil Capacity 2.9 oz
Adjustment Type Locking Knob, Nonrising
Sight Dome Included Yes
Number of Air Inlets 1
Minimum Operating Pressure 0 psig
Weight 1.2 lb
For Substance Type Air
Number of Air Outlets 1
Lubricator Bowl Guard Material Steel
Modular Connection Modular Connection
Maximum Flow Rate 90 cfm
Lubricator Type Mist
Maximum Operating Temperature 125 Degrees F
Minimum Operating Temperature 32 Degrees F
Minimum Flow Rate 40 cfm
Air Outlet Type NPT
Lubricator Bowl Guard Included Yes
Maximum Flow @ 100 psi 90 cfm
Adjustment Mechanism Locking Knob, Nonrising
Lubricator Bowl Capacity 2.9 oz
System Location Air Line
Lubricator Bowl Material Polycarbonate
Recommended Lubricant F442 Oil
Sight Gauge Included Yes
Maximum Operating Pressure 150 psi
Pressure Drop 5 psi
Seal Material Nitrile Rubber
For Fluid Type Compressed Air
Includes Bowl, Fill Plug, Guard, Sight Dome
Air Inlet Type NPT
For Maximum Pipe Run 20 ft

Description

Compressed Air Lubricator, Lubricator Type Mist, Lubricator Bowl Material Polycarbonate, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 90 cfm, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 125 Degrees F, Adjustment Mechanism Locking Knob, Nonrising, Body Material Zinc, Overall Width 2 3/4 in, Series 06L, Sight Dome Included Yes, Sight Gauge Included Yes, Air Outlet Size 1/4 in, Air Outlet Type NPT, Drain Included No, For Fluid Type Compressed Air
