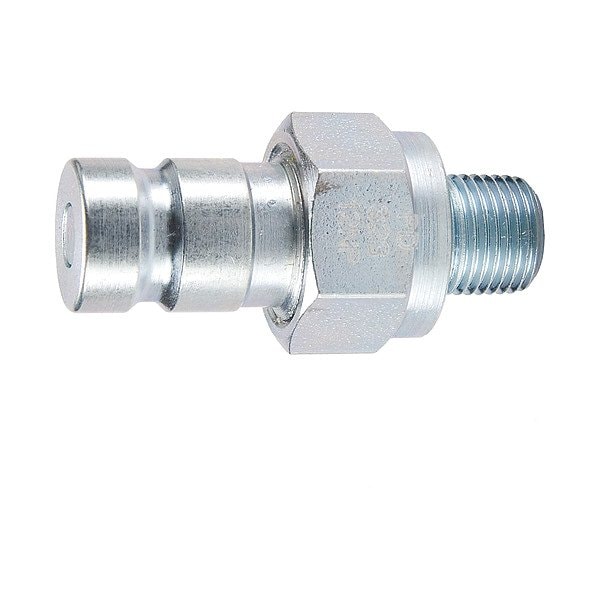

Nipple with Dust Cap, Steel Body, Push-to-Connect Lock, 7/16"-20 Thread Size

Mfr # PD341-6
Zoro # G116245095

27.99

Key Features

Body Material

Steel

Seal Material

Buna-N

Coupling Locking Type

Push-to-Connect

Thread Size

7/16"-20

Connection Type

Threaded

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: PD341-6
Zoro #: G116245095
UPC #: -
Country of Origin: United States

Dimensions

Thread Size: 7/16"-20
Overall Length: 1 5/8 in
Coupling Size: 1/8 in
Max. Outside Dia.: 13/16 in
Wire Rope Length: 1 5/8 in
Length: 1 5/8 in

Details

Item: Hydraulic Quick Connect Hose Coupling
Body Material: Steel
Seal Material: Buna-N
Coupling Locking Type: Push-to-Connect
Connection Type: Threaded
For Use With: Cooling Systems, Fluid or Air System Maintenance and Troubleshooting, Industrial Hydraulic Systems, Mobile Equipment Engines, System Performance Optimization, System Validation
Includes: Dust Cap
Temp. Range: -40 Degrees to 250 Degrees F
Coupling Component: Plug
Standards: ISO 15171-1, SAE J1502
Valve Type: Flat Face
Finish/Coating: Trivalent Chromium Zinc
Max. Flow Rate: 3.03 lpm
Hose Fitting Gender: Male
Includes Valve: No
Operating Temperature - Maximum: 250 Degrees F
Max. Working Pressure @ 70 F: 6,000 psi
Operating Temperature - Minimum: -40 Degrees F
Series: PD

Description

Nipple with Dust Cap, Plug, Steel, Coupling Size 1/8 in, Male, Max. Flow Rate 3.028 lpm
