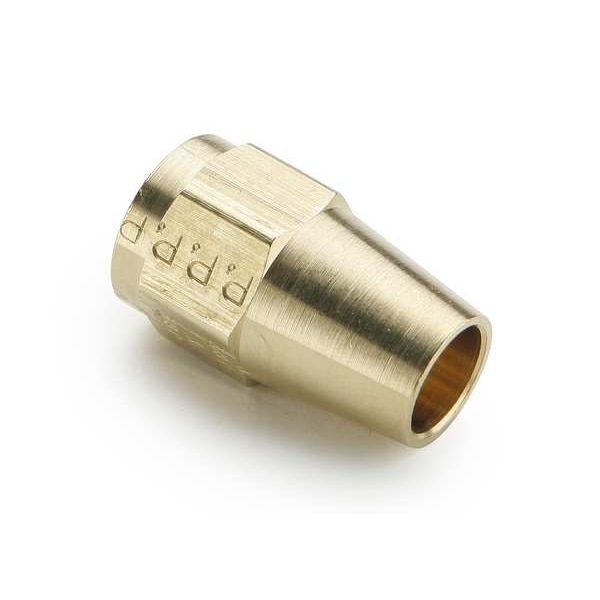

Nut, Brass, Compression, 3/8 in

Mfr # 61AB-6
Zoro # G705307364

Key Features

Thread Size

17/32"-24

Specific Fitting Shape

Nut

Fitting Connection Type

Compression

System of Measurement

Imperial

Hex Size

5/8 in

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 61AB-6
Zoro #: G705307364
UPC #: -
Country of Origin: United States

Dimensions

Thread Size: 17/32"-24
Hex Size: 5/8 in
Compatible Tube Outer Diameter: 3/8 in
Overall Length: 1 1/8 in
Wire Rope Length: 1 1/8 in
Length: 1 1/8 in

Details

Item: Compression Fitting Nut
Specific Fitting Shape: Nut
Fitting Connection Type: Compression
System of Measurement: Imperial
Minimum Operating Temperature: -65 Degrees F
Maximum Operating Pressure: 400 psi
Compatible Tube Material: Copper
Application: Air
Standards: DOT FMVSS 571.106, SAE J246
Fitting Material: Brass
Maximum Operating Temperature: 250 Degrees F
Fitting Shape: Nut
Compatible Fitting Brands: Parker
Material Grade: C36000
Operating Temperature - Maximum: 250 Degrees F
For Media Type: Air
Operating Pressure - Maximum: 400 psi
Fitting Features: Rigid
Product Type: Compression Fitting Nut
Precleaned Type: Cleaned
Operating Temperature - Minimum: -65 Degrees F

Description

Compression Fitting Nut, Application Air, Fitting Material Brass, Material Grade C36000, Maximum Operating Pressure 400 psi, Maximum Operating Temperature 250 Degrees F, Overall Length 1 1/8 in, Thread Size 17/32 In.-24, Specific Fitting Shape Nut, System of Measurement Imperial, Compatible Tube Outer Diameter 3/8 in, Compatible Fitting Brands Parker, Standards DOT FMVSS 571.106, SAE J246, Compatible Tube Hardness Not Applicable, Compatible Tube Material Copper
