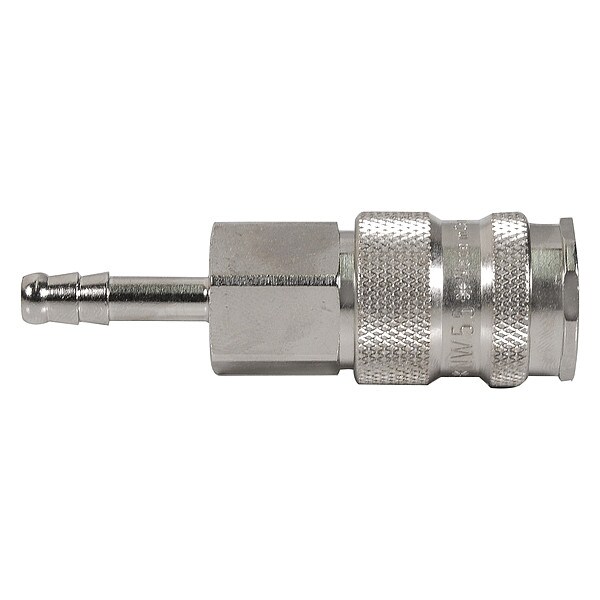

Quick Connect Socket, Brass, 2 13/16" L
- Mfr # 23KATF06MPN
- Zoro # G110832000
Key Features
Specifications
Details
- MFR #
- 23KATF06MPN
- Zoro #
- G110832000
- UPC #
- -
- Country of Origin
- Germany
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Brass
- Coupling Component
- Socket
- Hose Fitting Gender
- Male
- Connection Type
- Hose Barb
- Finish/Coating
- Nickel-Plated
- Max. Flow Rate
- 36.5 scfm
- Coupling Locking Type
- Ball
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Temp. Range
- -4 Degrees to 212 Degrees F
- Includes
- Locking Balls, Valve Spring
- Standards
- A-A-59439, ISO 6150-B, MIL-C-4109F
- Barbed
- Yes
- Max. Working Pressure @ 70 F
- 300 psi
- For Hose I.D.
- 1/4 in
- Valve Type
- Poppet
- For Use With
- Industrial Interchange
Description
The PARKER - 23KATF06MPN is a quick connect socket designed for quick-connect coupling; includes an internal poppet valve intended to reduce fluid/air loss during connection and disconnection. It functions as the female half of a quick-connect coupling, accepting and locking the matching plug through a push-to-connect action with a spring-loaded release sleeve. The fitting includes an internal poppet valve that reduces fluid/air loss during rapid, tool-free connection and disconnection. Made of brass with a nickel-plated finish, it is suitable for use with industrial interchange systems and fits hoses with a 1/4 in inner diameter using a barbed male hose fitting connection.
Key Features:
- Barb Size: 1/4 in; Hose Fitting Size: 1/4 in; Hose I.D. compatibility: 1/4 in
- Coupling Component: Socket with ball locking for retention when the matching plug is engaged
- Material: Brass with nickel-plated finish for corrosion resistance
- Includes Valve: Yes, with poppet valve type for flow control
- Maximum Working Pressure: 300 psi at 70°F
- Maximum Flow Rate: 36.5 scfm
- Overall Length: 2.81 in
- Seal Material: Nitrile
- Temperature Range: -4°F to 212°F
- Standards: A-A-59439; ISO 6150-B; MIL-C-4109F
- Includes Components: Locking balls and valve spring
- Connection Type: Hose Barb; Hose Fitting Gender: Male
