Quick Connect Socket, Brass, 2 3/16" L
- Mfr # 23KAIN13MPN
- Zoro # G810831969
product price:
$
26.69
/ea
Sold in multiples of 10 for $266.90
Key Features
Interchange Type
Industrial
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Female
Connection Type
Threaded
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 23KAIN13MPN
- Zoro #
- G810831969
- UPC #
- -
- Country of Origin
- Germany
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Brass
- Coupling Component
- Socket
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Nickel-Plated
- Max. Flow Rate
- 37 scfm
- Coupling Locking Type
- Ball
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Temp. Range
- -4 Degrees to 212 Degrees F
- Standards
- A-A-59439, ISO 6150-B, MIL-C-4109F
- Includes
- Locking Balls
- For Use With
- Industrial Interchange
- Max. Working Pressure @ 70 F
- 300 psi
- Valve Type
- Poppet
- Connection Thread Type
- NPS
Description

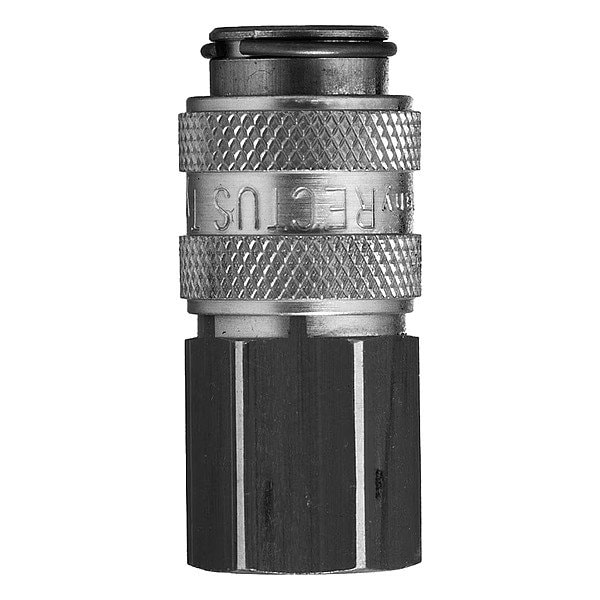

The PARKER - 23KAIN13MPN is a quick connect socket designed as the female half of a quick-connect coupling for connection to a matching plug. It connects to a matching plug using a push-to-connect action with a spring-loaded release sleeve and includes an internal poppet valve to control air or fluid flow during hookup and disconnection. This fitting is compatible with industrial interchange standards and made primarily of brass with a nickel-plated finish. Temperature rating: -4°F to 212°F. Maximum working pressure rating: 300 psi. Flow rate: 37 scfm.
Key Features:
- Body and hose fitting size: 1/4 in
- Connection type: NPSF thread with 1/4"-18 thread size
- Coupling component: Socket with ball locking mechanism
- Seal material: Nitrile
- Includes locking balls and an integrated poppet valve
- Overall length: 2.19 in; maximum outside diameter: 1 in
- Material: Brass with a nickel-plated finish
- Interchange type: Industrial
- Meets standards A-A-59439; ISO 6150-B; MIL-C-4109F
