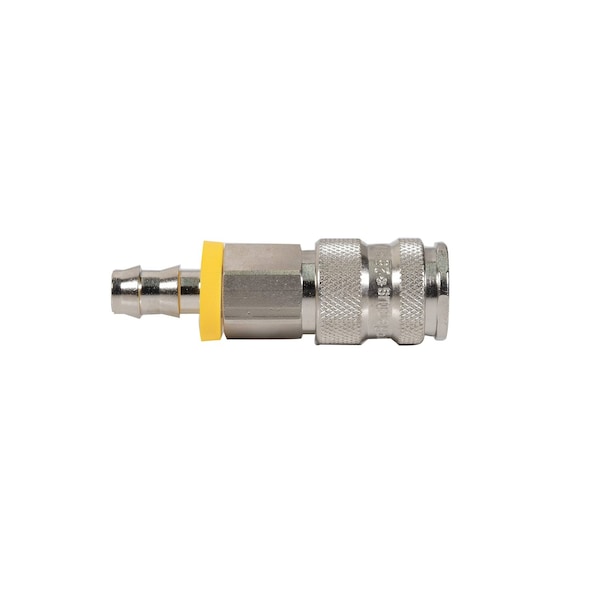

Quick Connect Socket, Brass, 2 3/4" L
Mfr # 25KATP10MPN
Zoro # G010831943
product price:
$
42.39
/ea
Sold in multiples of 10 for $423.90
Key Features
Interchange Type
European High Flow
Material
Brass
Coupling Component
Socket
Hose Fitting Gender
Male
Connection Type
Hose Barb
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 25KATP10MPN
- Zoro #
- G010831943
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Hose Fitting Size
- 3/8 in
- Barb Size
- 3/8 in
- Overall Length
- 2 3/4 in
- Body Size - Quick Connect Air Couplings
- 1/4 in
- Max. Outside Dia.
- 1 in
- Wire Rope Length
- 2 3/4 in
- Length
- 2 3/4 in
Details
- Item
- Quick Connect Socket
- Interchange Type
- European High Flow
- Material
- Brass
- Coupling Component
- Socket
- Hose Fitting Gender
- Male
- Connection Type
- Hose Barb
- Finish/Coating
- Nickel-Plated
- Max. Flow Rate
- 110 scfm
- Coupling Locking Type
- Ball
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Temp. Range
- -4 Degrees to 212 Degrees F
- Includes
- Locking Balls
- Max. Working Pressure @ 70 F
- 300 psi
- Barbed
- Yes
- For Hose I.D.
- 3/8 in
- Valve Type
- Poppet
Description
The PARKER - 25KATP10MPN is a Quick Connect Socket, the female component of a quick-connect coupling intended for use with compatible quick-connect plugs to form a sealed connection within the stated pressure and temperature ranges. It features a push-to-connect mechanism utilizing a spring-loaded release sleeve and an internal poppet valve for quick, tool-free coupling and uncoupling, which is designed to control flow during coupling and uncoupling using an internal poppet valve. Materials: brass body with nickel-plated finish. It is suitable for use with hoses, tools, or equipment requiring quick connections suitable for pneumatic, hydraulic, and general fluid system applications within the specified ratings.
Key Features:
- engagement port size: 1/4 in (as specified)
- Hose barb connection with a barb size and hose fitting size of 3/8 in, compatible with hoses having a 3/8 in inner diameter
- Male hose fitting gender
- Includes locking balls to secure the plug
- Valve type: poppet valve integrated to control flow during coupling
- Valve type: poppet valve integrated to control flow during coupling
- overall length: 2.75 in (as specified) and maximum outside diameter of 1 in (maximum as specified)
- Seal material: nitrile
- rated for operation within -4°F to 212°F
- Coupling locking mechanism uses ball locking
- Interchange type: European High Flow
