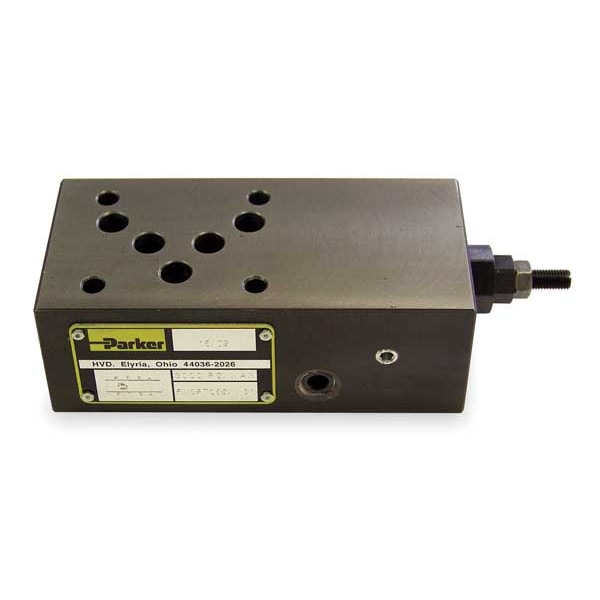

Relief Valve, 20 gpm
Mfr # RM3PT25SN
Zoro # G1430152
product price:Â
$
798.99
/ea
Free Shipping & Returns
Key Features
Overall Height
1.97 in
Overall Length
7.35 in
Overall Width
2.75 in
Valve Type - Hydraulic Valves
Hydraulic Relief Valve
Height (In.)
1.97 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- RM3PT25SN
- Zoro #
- G1430152
- UPC #
- -
- Country of Origin
- United States
- Item
- Relief Valve
- Valve Type - Hydraulic Valves
- Hydraulic Relief Valve
- Max. Pressure - Hydraulic Valves
- 5,000 psi
- Adjustable PSI Range
- 150 to 3000
- Series
- RM
- Standards
- ISO 4406
- For Use With
- D05 Valves
- Max. Flow - Hydraulic Valves
- 20 gpm
- Type
- Pressure Port to Tank
- Operation Type - Hydraulic Valves
- Pressure Port to Tank
- Seal Type
- Nitrile O-Ring
- Max. Pressure (PSI)
- 5000
- GPM @ 3000 PSI
- 20
- Spool Type
- Open, Spring Offset End To End
- Pressure Setting - Minimum
- 150 psi
- Includes Seals
- Seals Included
- Pressure Setting - Maximum
- 3,000 psi
- Pressure - Maximum
- 3,500 psi
- Operating Temperature - Maximum
- 100 Degrees F
- Valve Control
- Pressure Relief
- Flow Rate - Maximum
- 20 gpm
- Seal Material
- Nitrile
- Adjustment Method
- Slotted Screw
- Flow Rate - Minimum
- 1 gpm
Description
Relief Valve, Flow Rate - Maximum 20 gpm, NFPA Size D05, Number of Positions -, Pressure - Maximum 3,500 psi, Valve Control Pressure Relief, Series RM, Overall Height 1.97 in, Pressure Setting - Maximum 3,000 psi, Pressure Setting - Minimum 150 psi, Standards ISO 4406, Overall Length 7.35 in, Overall Width 2.75 in, Seal Material Nitrile, Operating Temperature - Maximum 100 Degrees F
