  11. Service/Shut Off Valve, 3/8 In, Copper

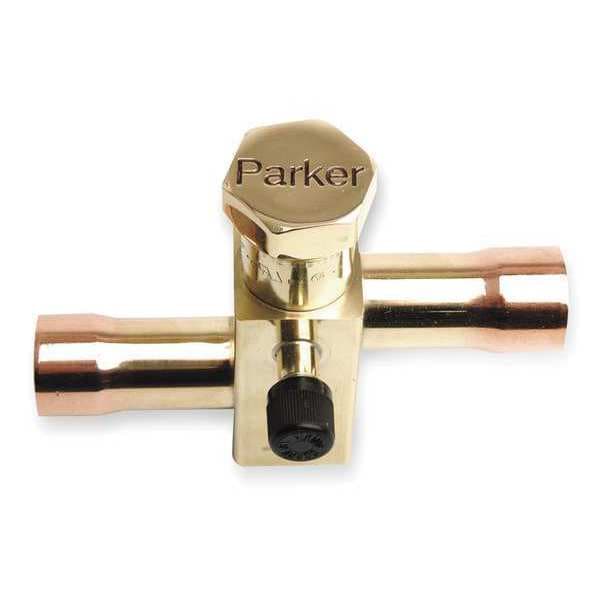

Parker Service/Shut Off Valve, 3/8 In, Copper QL171R-06-06 - main

Service/Shut Off Valve, 3/8 In, Copper

  • Mfr # QL171R-06-06

  • Zoro # G0940782

product price: $64.89
/ea

Key Features

Connection Size
3/8 in ODF
For Use With
R-22 Air Conditioning Condensing Units and Heat Pumps
Outside Dia.
1/2 in
Max. Working Pressure
750 psi
Includes
1/4 in SAE Access Valve on Right Facing Field Connection
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QL171R-06-06
Zoro #
G0940782
UPC #
687472028239
Country of Origin
United States

Dimensions

Connection Size
3/8 in ODF
Outside Dia.
1/2 in
Overall Length
4.6 in
Overall Width
0.5 in
Mounting Hole Size
1/4"-20
Outlet Connection Size
3/8 in
Inlet Connection Size
3/8 in

Details

Item
Refrigerant Ball Valve
For Use With
R-22 Air Conditioning Condensing Units and Heat Pumps
Max. Working Pressure
750 psi
Includes
1/4 in SAE Access Valve on Right Facing Field Connection
Operating Pressure
Vacuum to 750 psi
Operating Temp. Range
-40 Degrees F to +250 Degrees F
Style
Front Seating
Connection Material
Copper
Body Material
Brass
Flow
Bi-directional
Control Direction
Bi-Directional
Operating Temperature - Maximum
250 Degrees F
Product Type
Refrigerant Ball Valve
Operating Pressure - Maximum
750 psi
Base to Inlet Midpoint Distance
0.89 in
Includes Mounting Holes
Mounting Holes Included
Operating Temperature - Minimum
-40 Degrees F
Inlet Connection Type
Sweat
Access Port Location
Right
Includes Access Port
Access Port Included
Mounting Hole Type
UNC

Description

Refrigerant Ball Valve, Body Material Brass, Overall Width 0.5 in, For Use With R-22 Air Conditioning Condensing Units and Heat Pumps, Includes 1/4 in SAE Access Valve on Right Facing Field Connection
