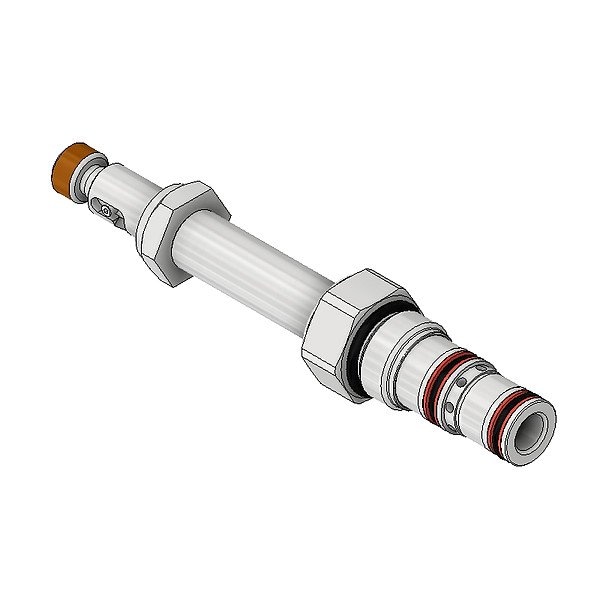

SOL VALVE 3-WAY
Mfr # DSH083BT
Zoro # G315920878
product price: $142.99
/ea
Free Shipping & Returns
Key Features
Number of Ways
Three-Way
Number of Positions
Two Positions
Standards
ISO 4406 18/16/13, SAE Class 4
Overall Width
1.33 in
Series
DSH083
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
DSH083BT
Zoro #
G315920878
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Width
1.33 in
Overall Length
2.47 in
Overall Height
4.04 in
Port Connection Dash Size
8
Port Connection Size
1.33
Valve Cavity Size
C08-3
Details
Number of Ways
Three-Way
Number of Positions
Two Positions
Standards
ISO 4406 18/16/13, SAE Class 4
Series
DSH083
Body Material
Steel
Item
Spool Valve
Operating Temperature - Maximum
200 Degrees F
Body Finish
Zinc Plated
Mounting
Screw-In
Operating Temperature - Minimum
-35 Degrees F
Fluid Viscosity - Maximum
2,000 SUS
Flow Rate - Maximum
4 gpm
Includes Seals
Seals Included
Pressure Setting - Maximum
5,000 psi
Action Type
Direct Acting
Cartridge Material
Steel
Seal Material
Polyurethane
Description
Spool Valve, Body Material Steel, Number of Positions Two Positions, Valve Action Not Applicable, Adjustment Method Not Applicable, Number of Ways Three-Way, Valve Cavity Size C08-3, Overall Length 2.47 in, Overall Width 1.33 in, Overall Height 4.04 in, Flow Rate - Maximum 4 gpm, Voltage Not Applicable, Pressure Setting - Maximum 5,000 psi, Port Connection Dash Size 8, Center Position Not Applicable, Port Connection Type Not Applicable, Port Connection Gender Not Applicable
