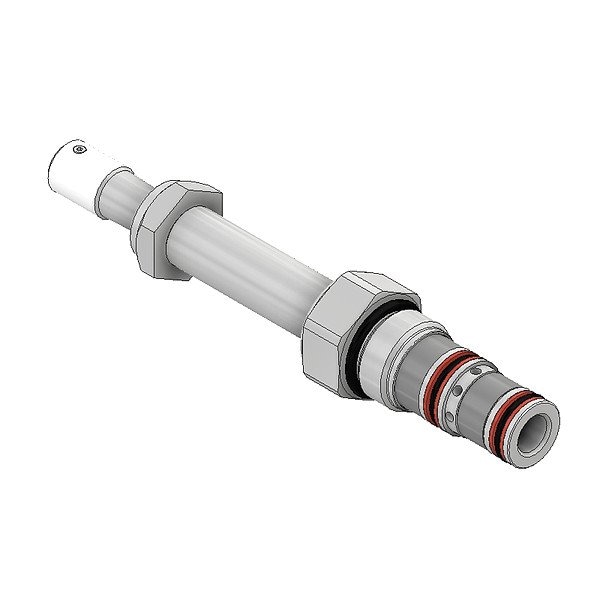

SOL VLV 8 SERIES 3W2P B SPOOL
Mfr # DSL083BP
Zoro # G315921011
product price:Â $112.99
/ea
Free Shipping & Returns
Key Features
Body Material
Steel
Overall Height
4.04 in
Overall Length
2.47 in
Overall Width
1.33 in
Series
DSL083
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DSL083BP
- Zoro #
- G315921011
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Overall Height
- 4.04 in
- Overall Length
- 2.47 in
- Overall Width
- 1.33 in
- Port Connection Dash Size
- 8
- Valve Cavity Size
- C08-3
- Port Connection Size
- 1.33
Details
- Item
- Spool Valve
- Body Material
- Steel
- Series
- DSL083
- Number of Positions
- Two Positions
- Standards
- ISO 4406 18/16/13, SAE Class 4
- Number of Ways
- Three-Way
- Body Finish
- Zinc Plated
- Fluid Viscosity - Maximum
- 2,000 SUS
- Includes Seals
- Seals Included
- Flow Rate - Maximum
- 4 gpm
- Operating Temperature - Maximum
- 200 Degrees F
- Mounting
- Screw-In
- Operating Temperature - Minimum
- -35 Degrees F
- Pressure Setting - Maximum
- 3,000 psi
- Cartridge Material
- Steel
- Seal Material
- Polyurethane
- Action Type
- Direct Acting
- Valve Type
- Spool-Type Solenoid Valve
Description
Spool Valve, Body Material Steel, Number of Positions Two Positions, Valve Action Not Applicable, Adjustment Method Not Applicable, Number of Ways Three-Way, Valve Cavity Size C08-3, Overall Length 2.47 in, Overall Width 1.33 in, Overall Height 4.04 in, Flow Rate - Maximum 4 gpm, Voltage Not Applicable, Pressure Setting - Maximum 3,000 psi, Port Connection Dash Size 8, Center Position Not Applicable, Port Connection Type Not Applicable, Port Connection Gender Not Applicable
