Shop PARKER

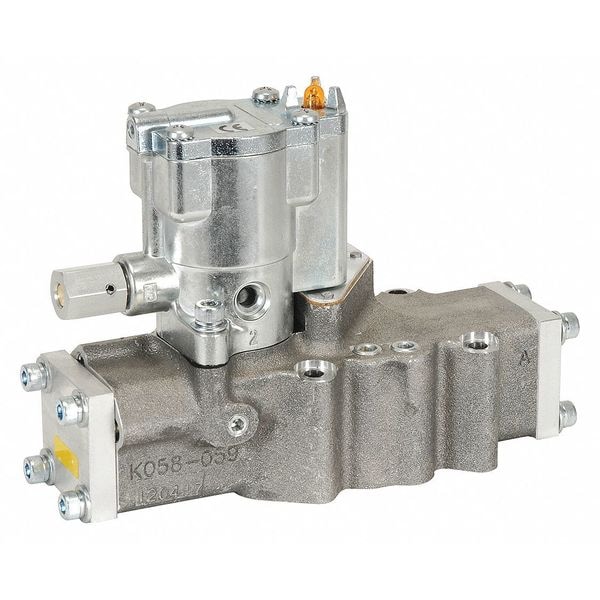

Solenoid Air Control Valve, 3/8 In, 120VAC

  • Mfr # L6753910253
  • Zoro # G0803704
product price:
$
832.99
/ea
Free Shipping & Returns

Key Features

Body Style
Body-Ported, Inline
Series
Valvair
Voltage
120V AC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
35 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
L6753910253
Zoro #
G0803704
UPC #
094705080825
Country of Origin
United States
Item
Solenoid Air Control Valve
Body Style
Body-Ported, Inline
Series
Valvair
Voltage
120V AC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
35 psi
Power Consumption
12 W
Coefficient of Volume
5
Body Material
Aluminum
Override
Locking
Actuator/Return
Solenoid/Spring
Electrical Connections
Plug-In
Valve Ways and Positions
4-Way/2-Position
Max. CFM - Valves
4.8 cfm
NEMA Classification
NEMA 1, 12
Standards
CSA Certified, UL Listed
Operational Pressure Range
35 to 145 psi
Pressure Range
35 to 145 psi
Air Valve Type
4-Way, 2-Position
Ambient Temp. Range
0 Degrees to 125 Degrees F
Number of Ways
Four-Way
Number of Positions
Two-Position
Body Features
Single
Inlet Port Connection Gender
Female
Product Type
Solenoid Air Control Valve
Operating Temperature - Minimum
0 Degrees F
Spool Material
Aluminum
Pilot Port Connection Gender
Female
Lubrication
Lubrication Not Required
Flow Rate - Maximum
120 cfm
Return Action
Spring Return
Pilot Port Connection Type
NPT
Coefficient of Volume (Cv)
5
Operating Temperature - Maximum
125 Degrees F
Actuator Type
Single Solenoid
Pilot Type
Internal Pilot
Operating Pressure - Maximum
145 psi
Exhaust Port Connection Type
NPT
Operating Pressure - Minimum
35 psi
For Media
Air
Valve Type
Spool
Inlet Port Connection Type
NPT
Number of Ports
5
Electrical Connection Type
Plug-In
Includes Solenoid Coil
Solenoid Coil Included
Poppet Material
Aluminum
Vacuum Rating
Not Vacuum Operable
NEMA Rating
1, 12

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 120V AC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class Not Applicable, Pipe Size 3/8 in, Max. CFM - Valves 4.8 cfm, Operational Pressure Range 35 to 145 psi, NEMA Classification NEMA 1, 12, Body Style Body-Ported, Inline, Pilot Port Size 3/8 in NPT, Pilot Pressure 35 psi, Coefficient of Volume 5, Plug-In Electrical Connections, Power Consumption 12 W
