Shop PARKER

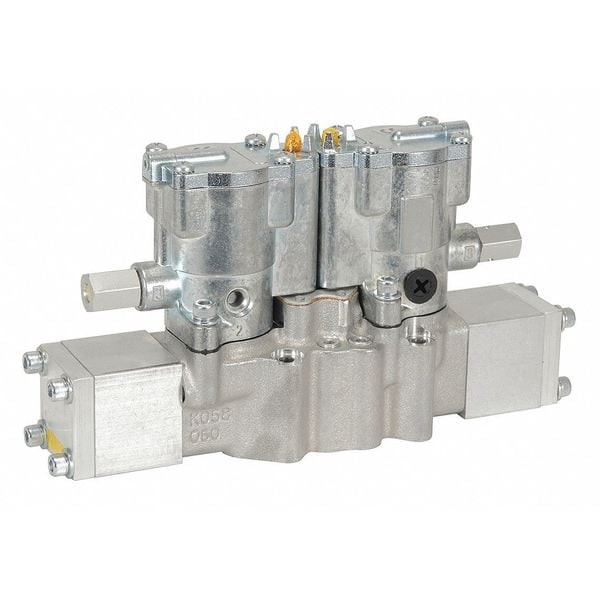

Solenoid Air Control Valve, 3/8 In, 24VDC

  • Mfr # L6653921149

  • Zoro # G0921042

product price:  $934.99
/ea
Free Shipping & Returns

Key Features

Body Style
Body-Ported
Series
Valvair
Voltage
24V DC
Valve Actuator / Return
Solenoid / Solenoid
Coefficient of Volume
4.5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
L6653921149
Zoro #
G0921042
UPC #
094705288481
Country of Origin
United States

Dimensions

Overall Height
6 15/16 in
Overall Width
2 27/32 in
Pipe Size
3/8 in
Pilot Port Size
3/8 in NPT
Overall Length
9 5/8 in
Inlet Port Connection Size
3/8 in
Pilot Port Connection Size
3/8 in

Details

Item
Solenoid Air Control Valve
Body Style
Body-Ported
Series
Valvair
Voltage
24V DC
Valve Actuator / Return
Solenoid / Solenoid
Coefficient of Volume
4.5
Center Position
Closed
Override
Locking
Actuator/Return
Solenoid/Solenoid
Electrical Connections
Plug-In
Valve Ways and Positions
4-Way/3-Position
Pressure Range
35 to 145 psi
Max. CFM - Valves
4.8 cfm
Standards
CSA Certified, UL Listed
Ambient Temp. Range
0 Degrees to 125 Degrees F
Operational Pressure Range
35 to 145 psi
NEMA Classification
NEMA 1, 12
Air Valve Type
4-Way, 3-Position
Number of Ways
Four-Way
Number of Positions
Three-Position
Operating Temperature - Maximum
125 Degrees F
Actuator Type
Double Solenoid
Coefficient of Volume (Cv)
4.5
Return Action
Solenoid Return
Electrical Connection Type
Plug-In
Operating Pressure - Minimum
35 psi
Inlet Port Connection Type
NPT
Pilot Port Connection Type
NPT
Lubrication
Lubrication Not Required
Flow Rate - Maximum
4.8 cfm
Operating Temperature - Minimum
0 Degrees F
Valve Type
4-Way, 3-Position, 5-Port
Includes Solenoid Coil
Solenoid Coil Included
For Media
Air
Product Type
Solenoid Air Control Valve
Operating Pressure - Maximum
145 psi
NEMA Rating
1, 12

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Voltage 24V DC, Center Position Closed, Valve Actuator / Return Solenoid / Solenoid, Pipe Size 3/8 in, Max. CFM - Valves 4.8 cfm, Operational Pressure Range 35 to 145 psi, NEMA Classification NEMA 1, 12, Body Style Body-Ported, Pilot Port Size 3/8 in NPT, Coefficient of Volume 4.5, Plug-In Electrical Connections, Ambient Temp. Range 0 Degrees to 125 Degrees F, Override Locking, Overall Height 6 15/16 in
